No. 5 Engine Stalls-After Start/At Idle: Notes

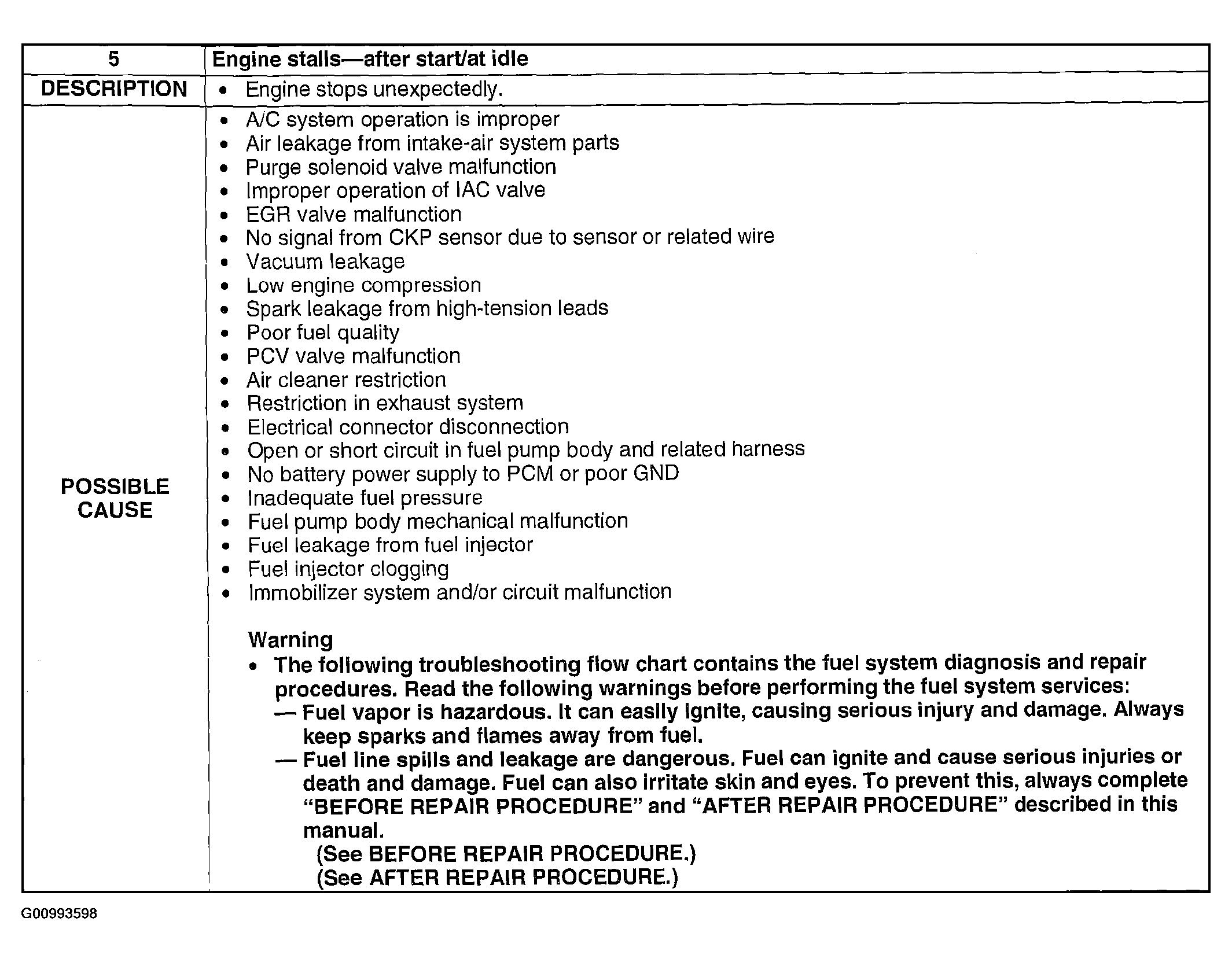

Fig 1: Symptom No. 5 Description & Possible Causes Chart
G00993598Courtesy of MAZDA MOTORS CORP.
