Freeze Frame PID Data Access Procedure
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Perform the necessary vehicle preparation and visual inspection.

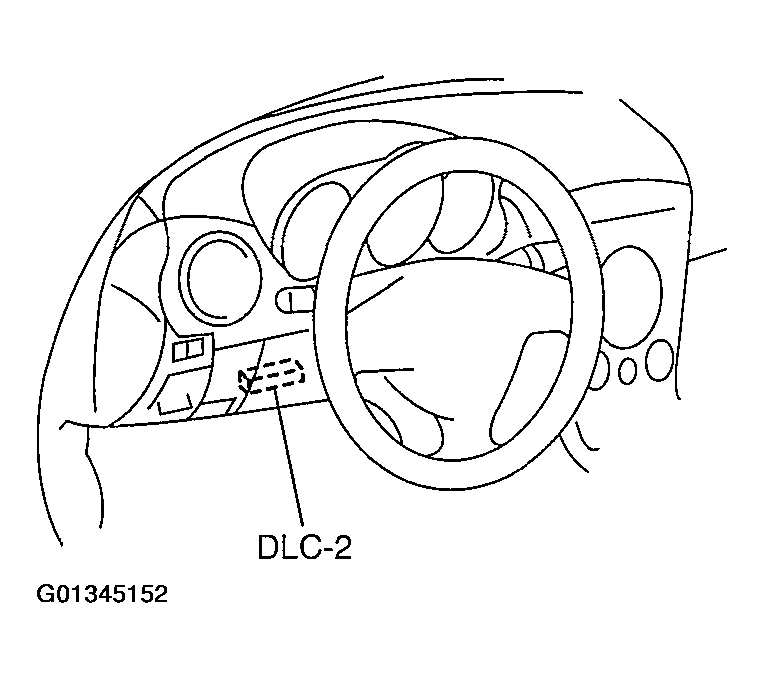

- Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
- Record the freeze frame PID data using the WDS or equivalent.
Courtesy of MAZDA MOTORS CORP.
