Abs/TCS HU/Cm Inspection: Notes
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

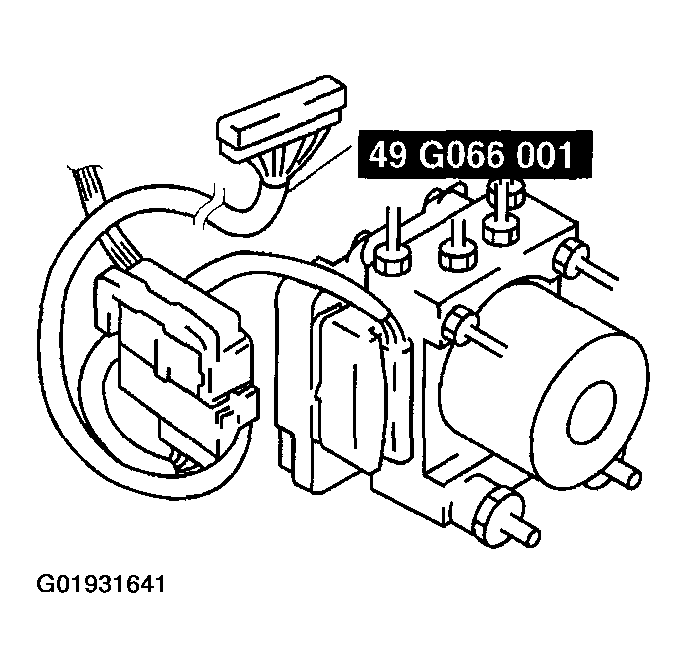

- Connect the SST between the ABS/TCS HU/CM and harness connector with the ignition switch off.
- Attach the tester leads to the SST and inspect voltage referring to TERMINAL VOLTAGE TABLE (REFERENCE) .
