Headlight Switch

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

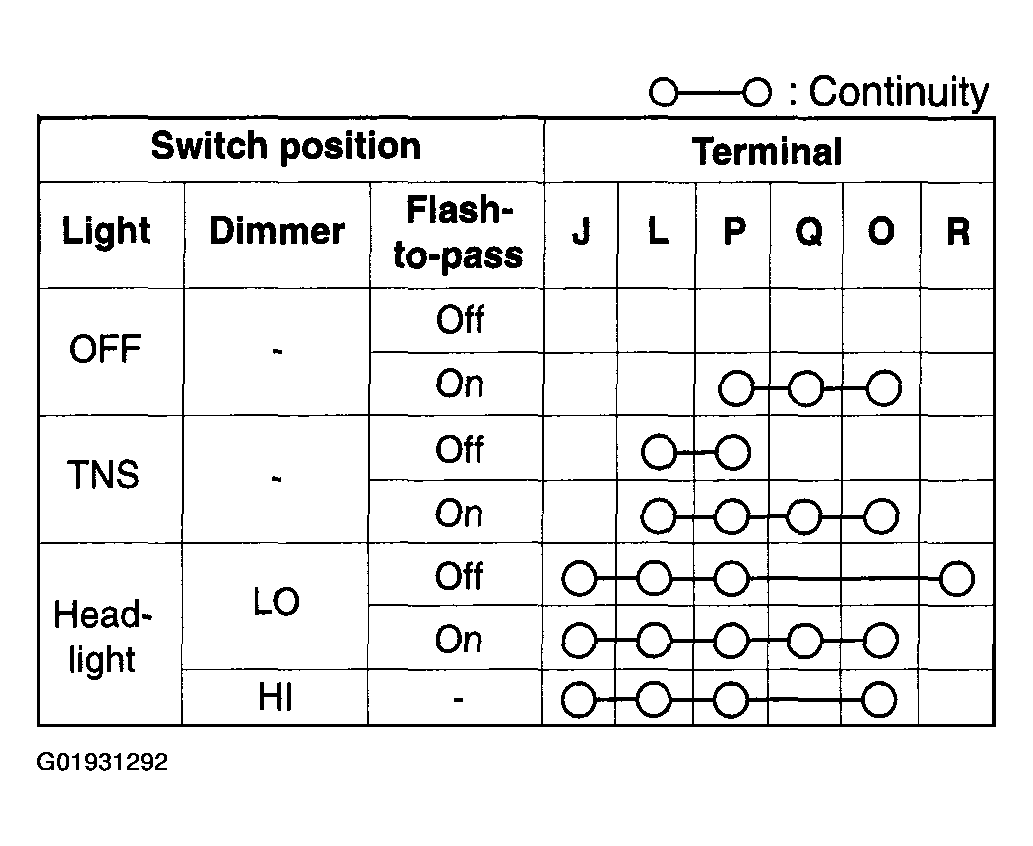

Fig 1: Headlight Switch Position And Terminals Continuity Chart

Courtesy of MAZDA MOTORS CORP.

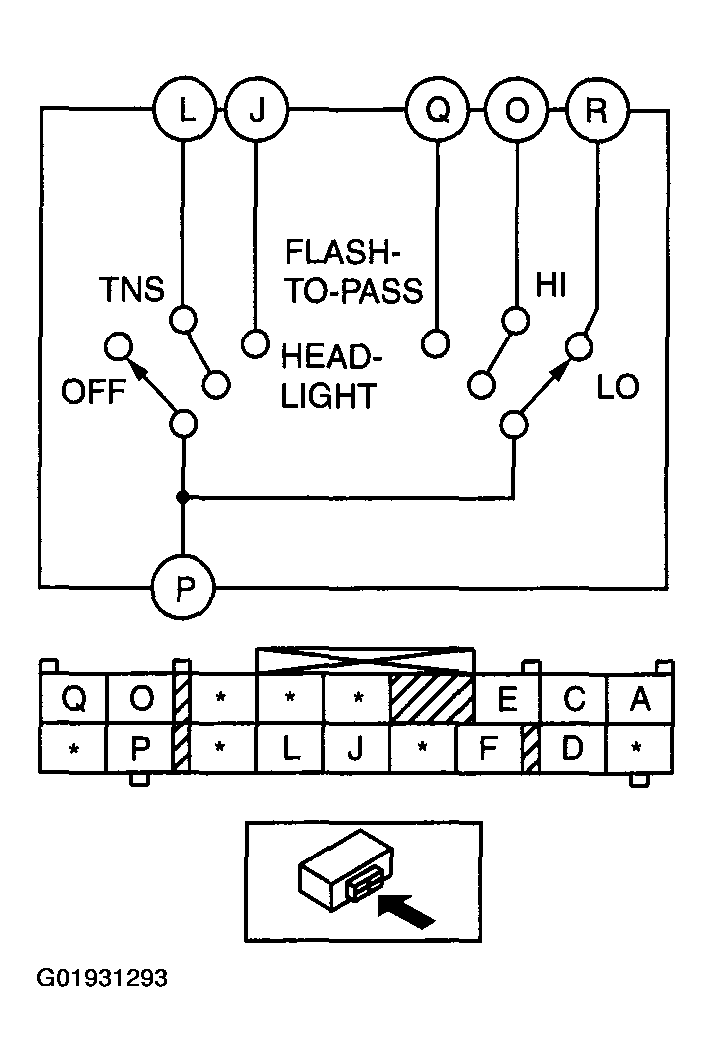

Fig 2: Identifying Headlight Switch Terminals

Courtesy of MAZDA MOTORS CORP.
