Rear Combination Light Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the figure(s).

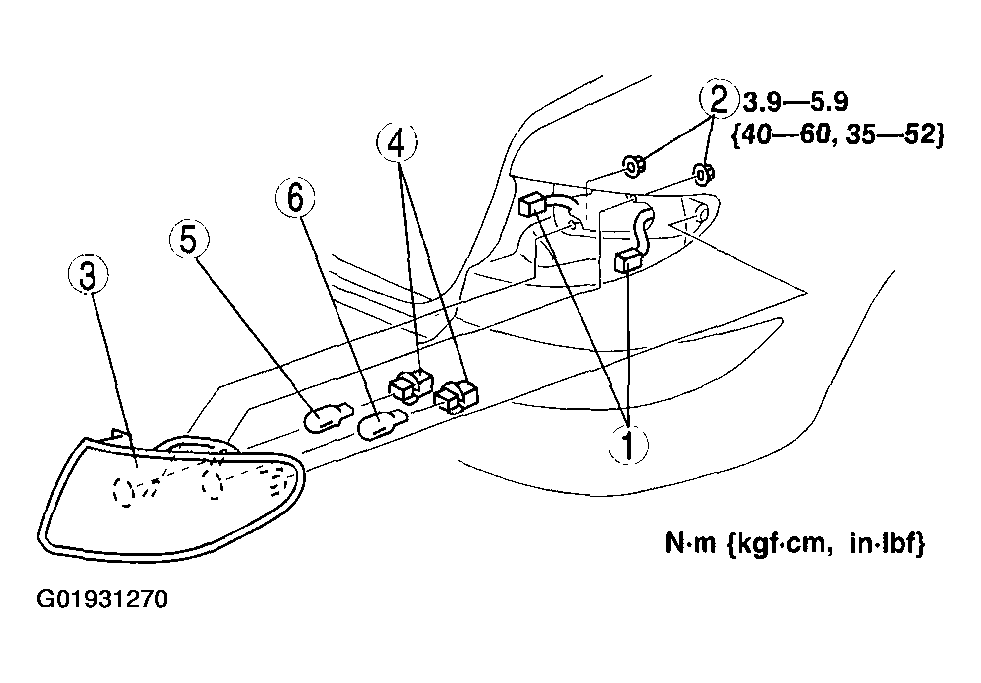

Fig 1: Removing Rear Combination Light
Courtesy of MAZDA MOTORS CORP.

Fig 2: Rear Combination Light Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
