Rear Map Light Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear map light. (See REAR MAP LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the rear map light terminals using an ohmmeter.
- If not as specified, replace the rear map light.
Fig 1: Rear Map Light Switch Position And Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

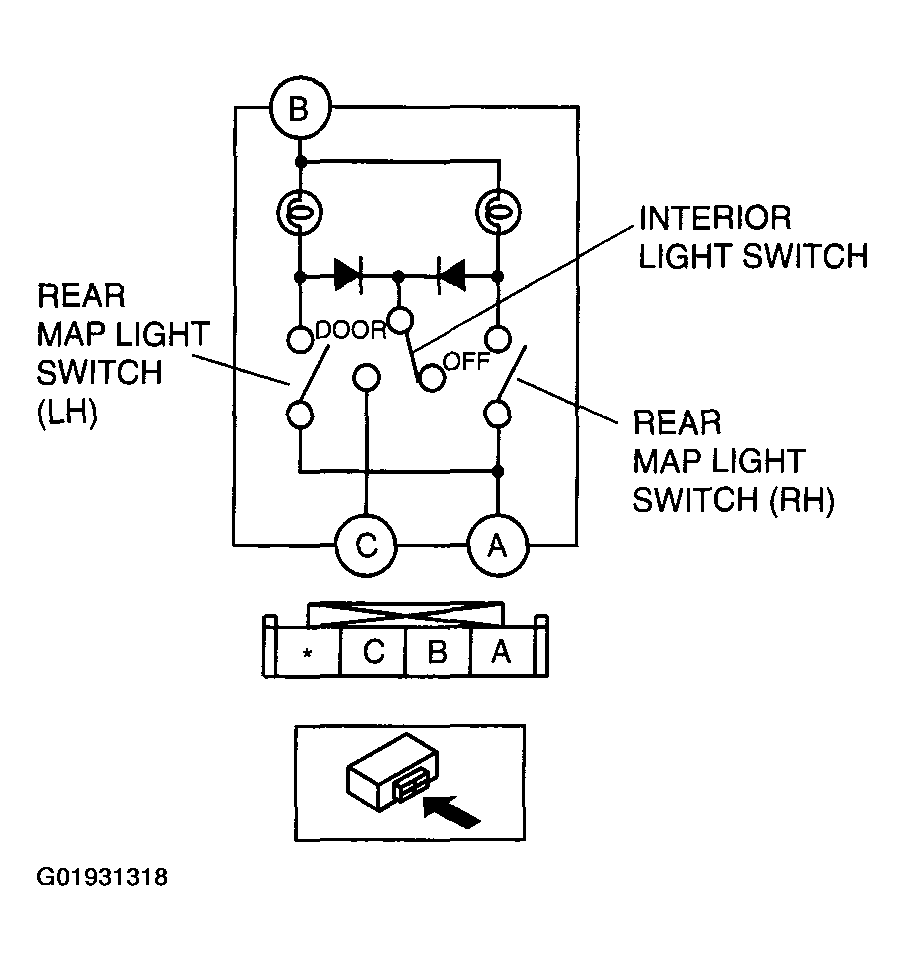

Fig 2: Identifying Rear Map Light Terminals
Courtesy of MAZDA MOTORS CORP.
