Headlight switch

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

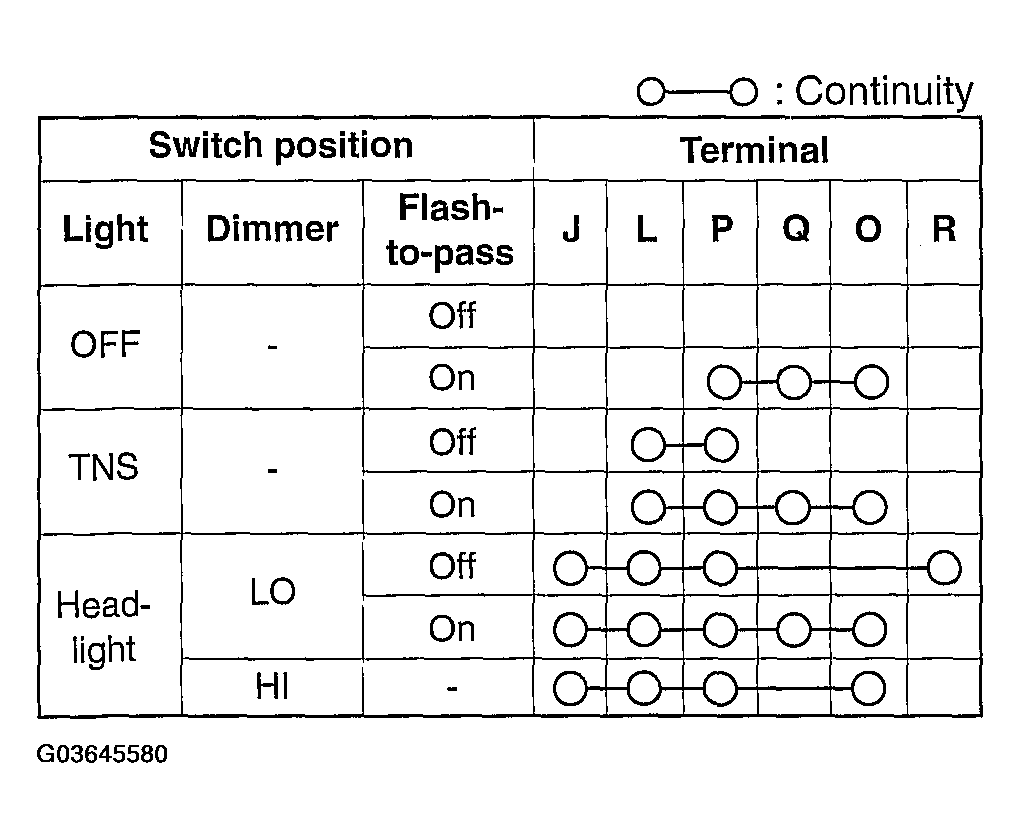

Fig 1: Headlight Switch Continuity Table

Courtesy of MAZDA MOTORS CORP.

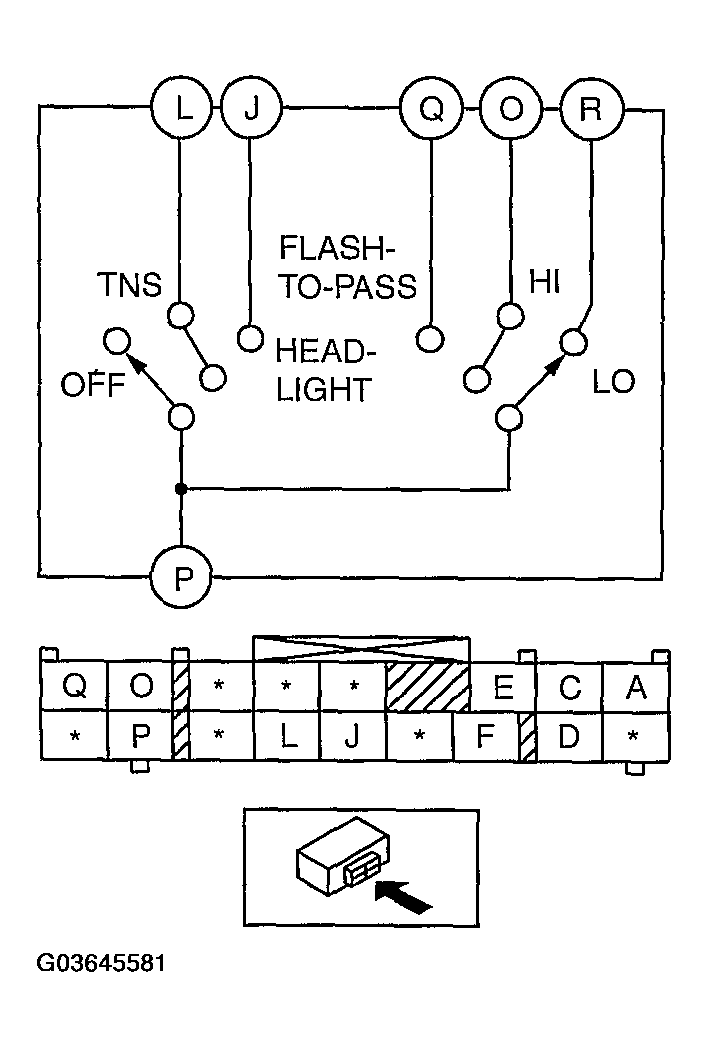

Fig 2: Headlight Switch Circuit Diagram And Connector Terminals

Courtesy of MAZDA MOTORS CORP.
