Rear Map Light Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear map light. (See REAR MAP LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the rear map light terminals using an ohmmeter.
- If not as specified, replace the rear map light.

  Fig 1: Rear Map Light Continuity Table
  Courtesy of MAZDA MOTORS CORP.

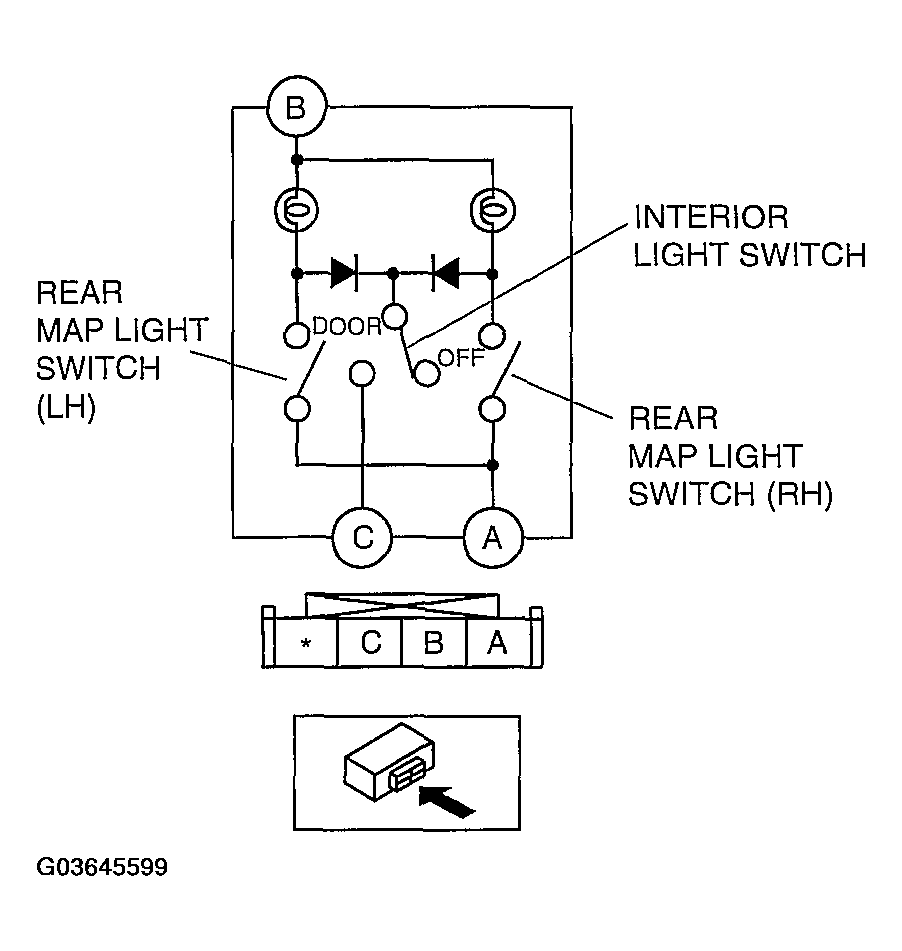

  Fig 2: Rear Map Light Circuit Diagram And Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
