Center Panel Module Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

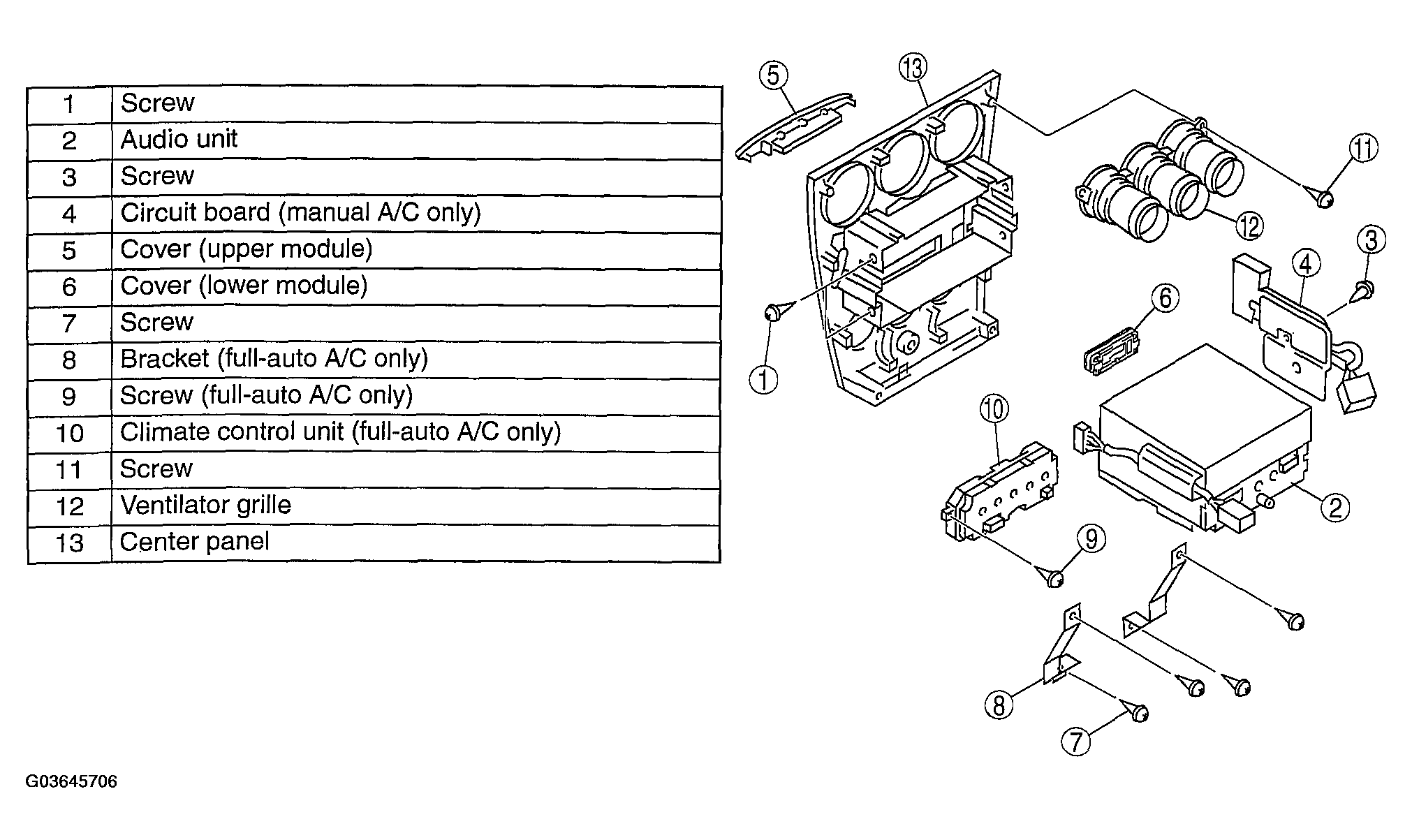

Fig 1: Center Panel Module Disassembly Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
