Front Lower Arm Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.

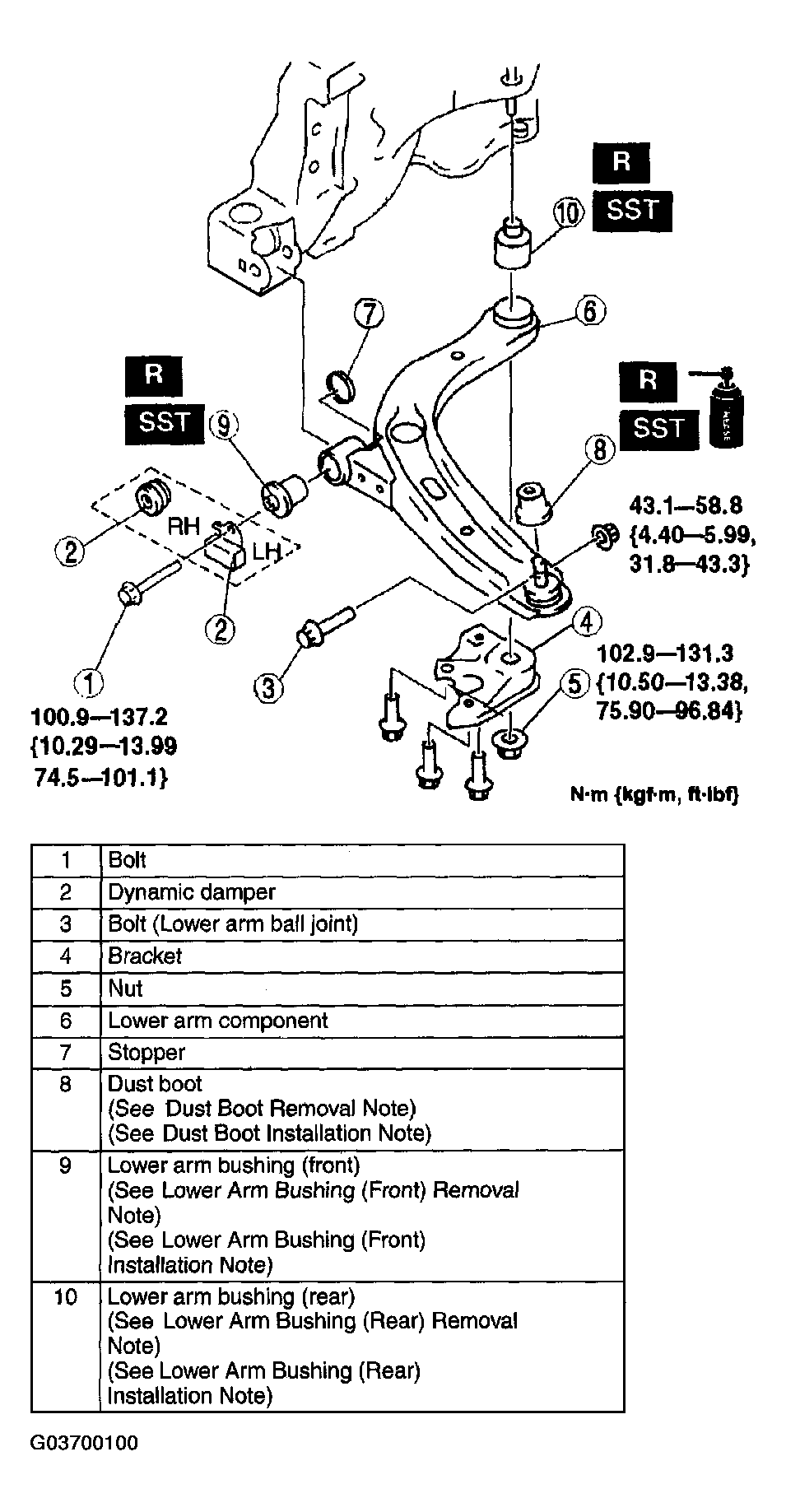

    Fig 1: Removing Front Lower Arm Components In Order
    G03700100Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
