Power Brake Unit Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. After installation, perform brake pedal inspection. (See BRAKE PEDAL INSPECTION .)

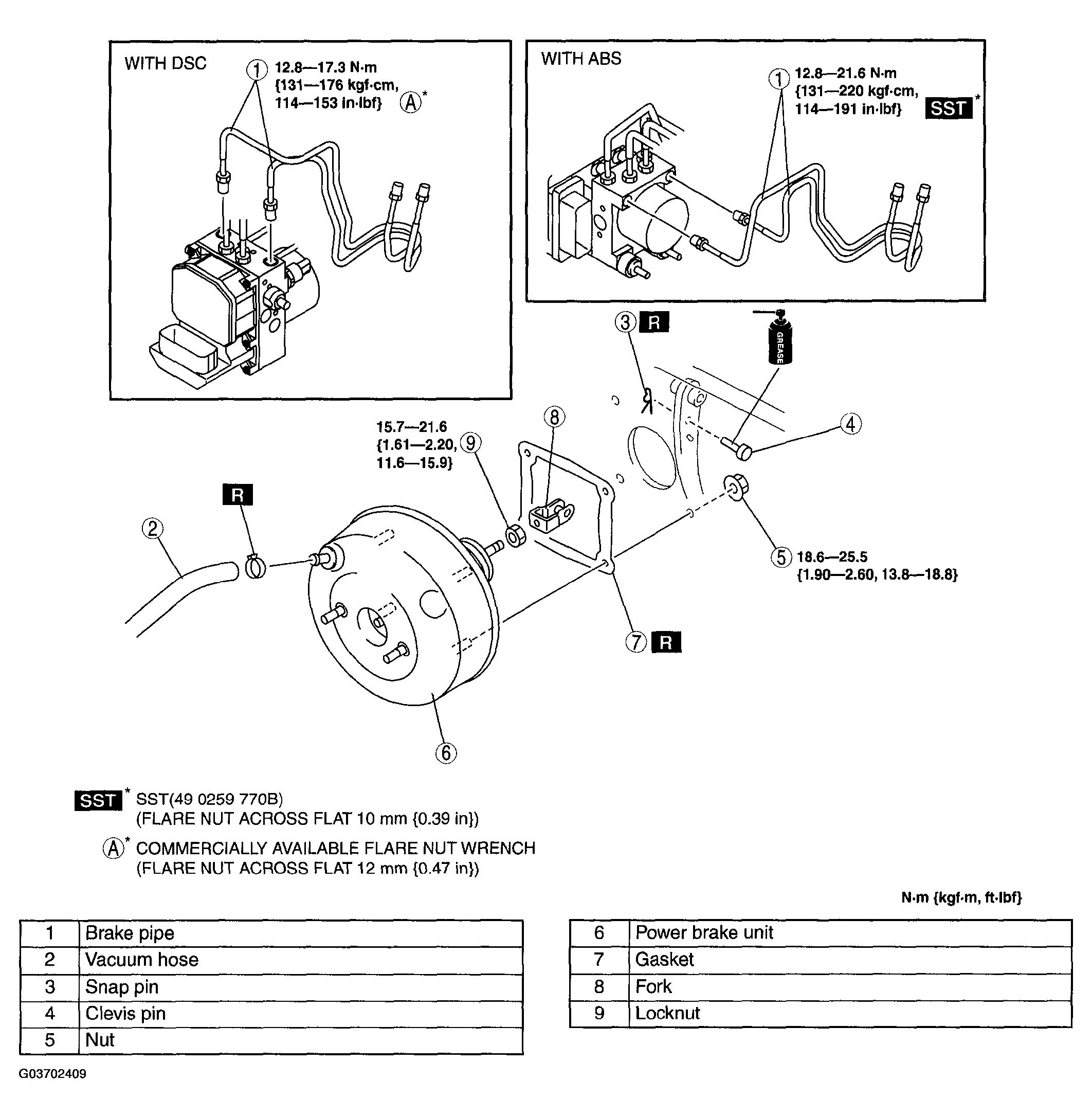

    Fig 1: Power Brake Unit Removing Sequence With Torque Specifications
    G03702409Courtesy of MAZDA MOTORS CORP.
