Climate Control Unit Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Pass each wire through the following routes, then connect them to each unit.

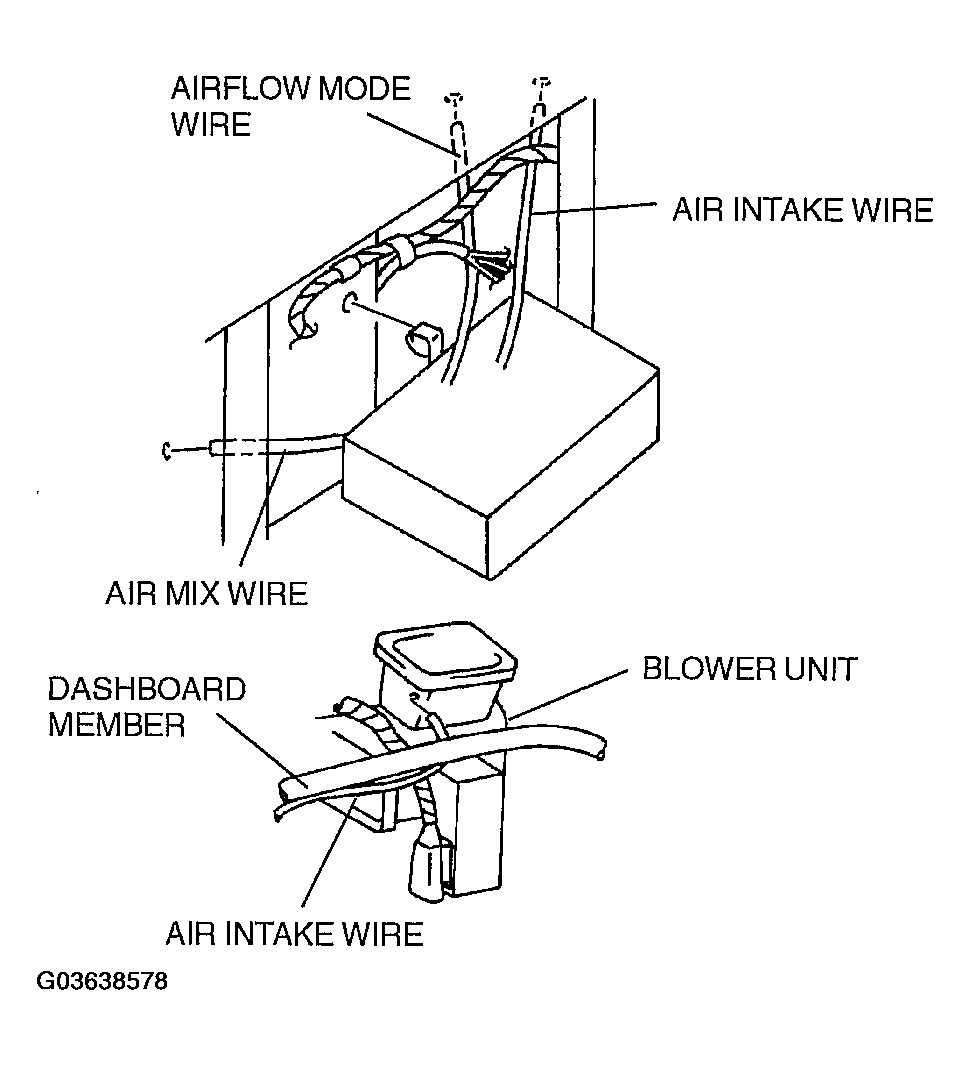

Fig 1: Routing & Attaching Wires
Courtesy of MAZDA MOTORS CORP.
Connect the climate control unit connectors.
Insert the climate control unit until each clip clicks.
Install the hole covers carefully to prevent the posts from breaking off.

Fig 2: Installing Hole Covers
Courtesy of MAZDA MOTORS CORP.
Adjust the climate control unit wire. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT .)
Connect the negative battery cable.
