Steering Wheel And Column Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SAFETY PRECAUTIONS before handling the air bag module.
  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.

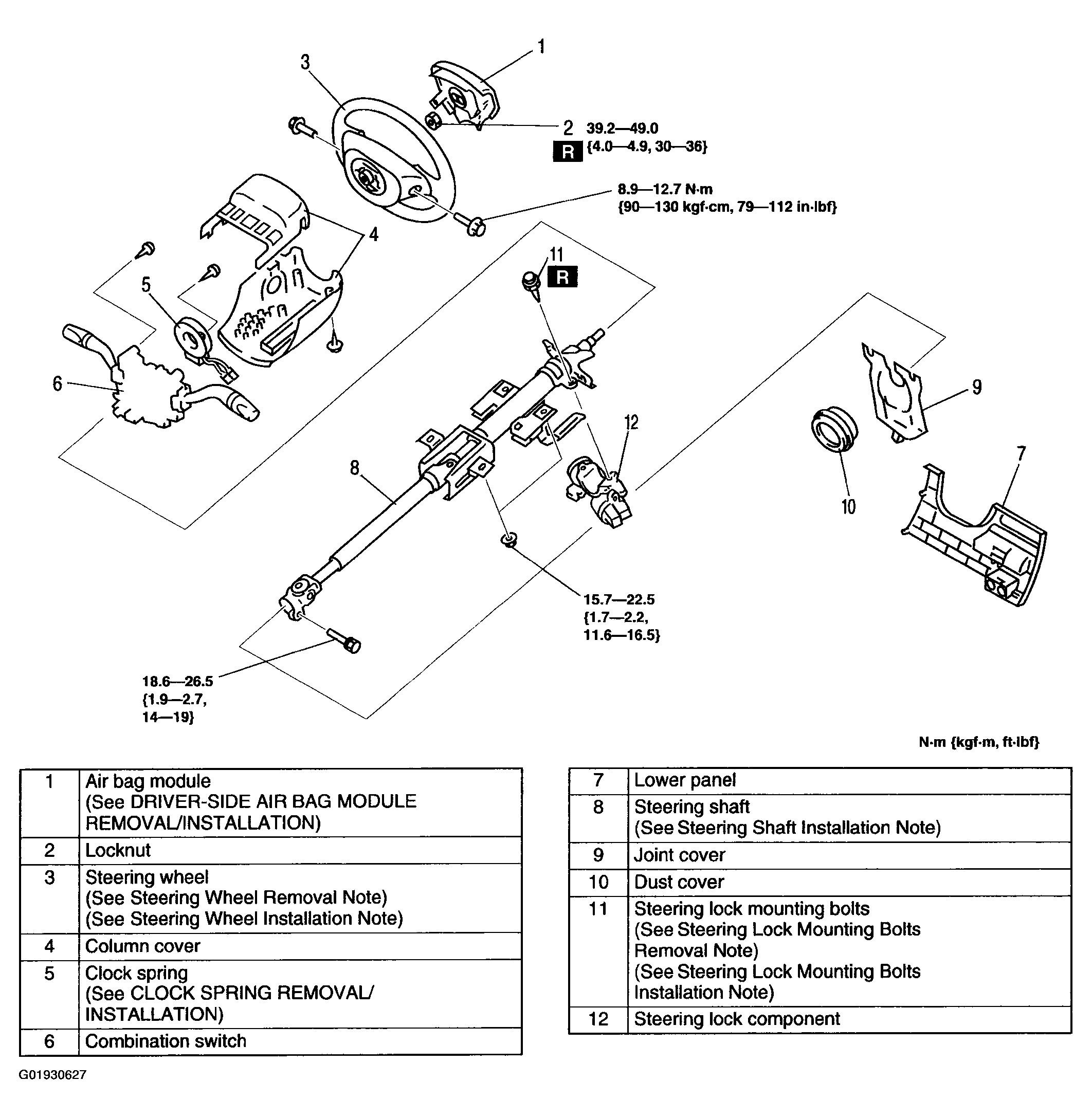

    Fig 1: Exploded View Of Steering Wheel And Column
    G01930627Courtesy of MAZDA MOTORS CORP.
