Using The Symptom Troubleshooting
Symptom troubleshooting shows diagnostic procedures, inspection methods, and proper action to take for each trouble symptom.

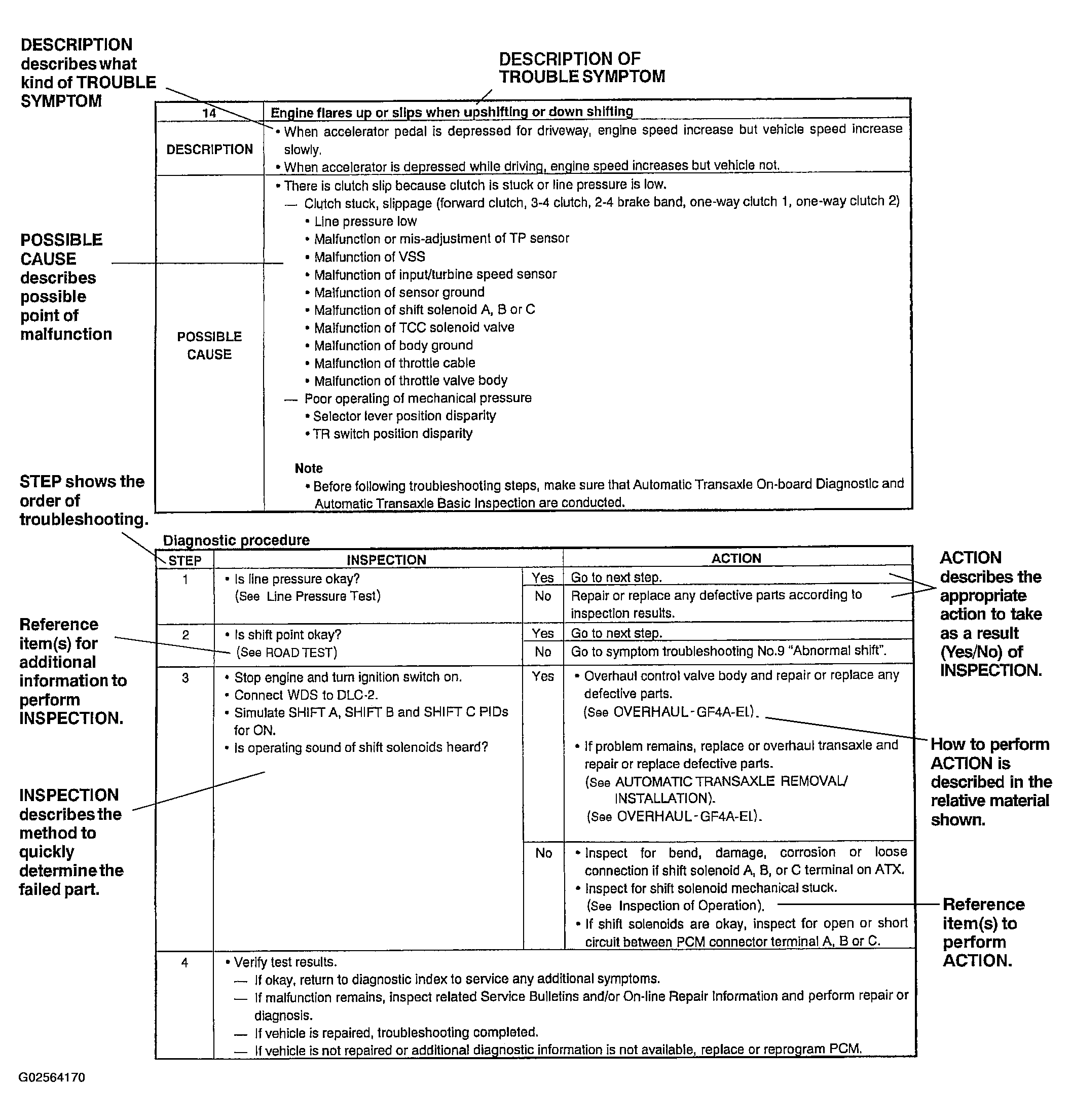

Fig 1: Using Symptom Troubleshooting Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
