Instrumental Cluster Connector End View

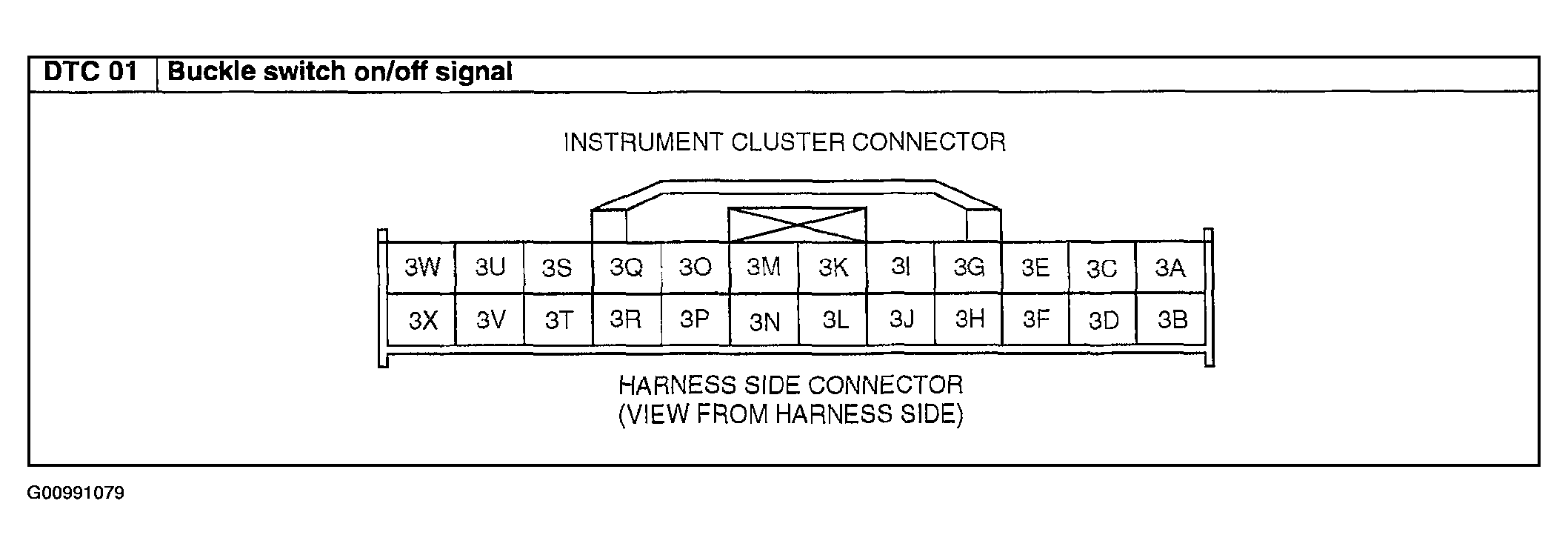

Fig 1: Instrumental Cluster Connector End View
G00991079Courtesy of MAZDA MOTORS CORP.

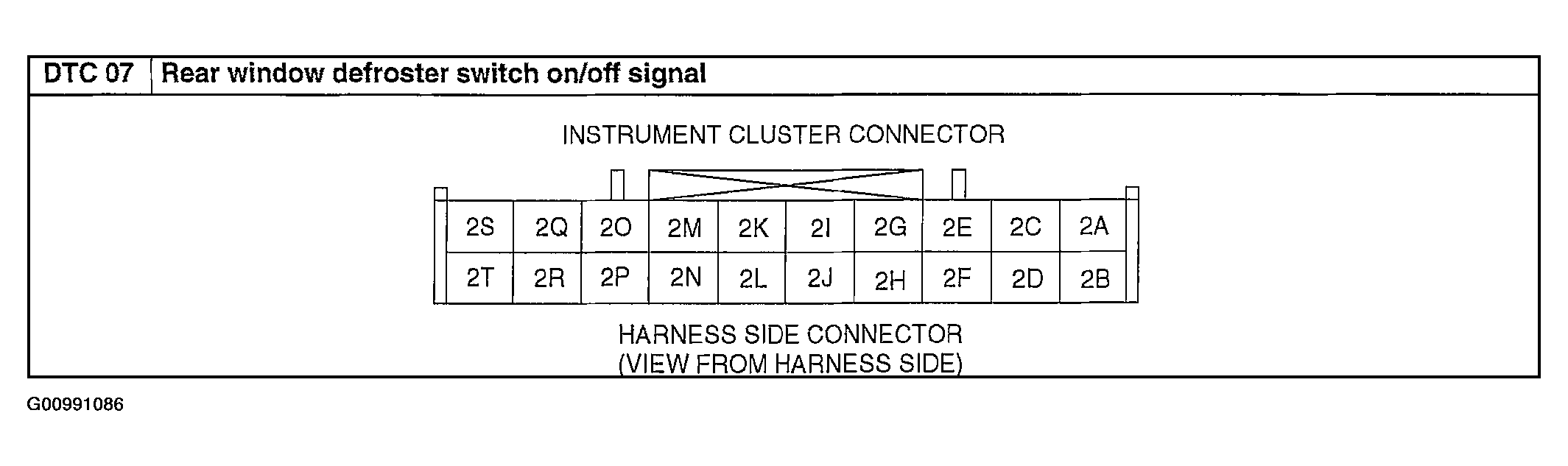

Fig 1: Instrumental Cluster Connector End View
G00991086Courtesy of MAZDA MOTORS CORP.

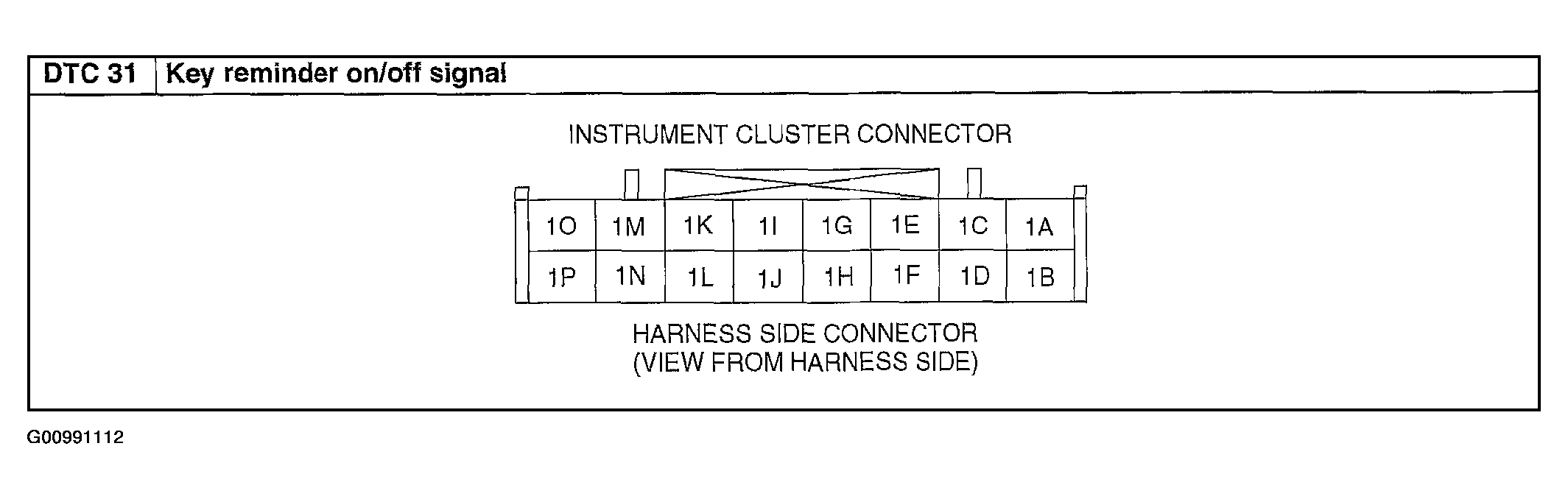

Fig 1: Instrumental Cluster Connector End View
G00991112Courtesy of MAZDA MOTORS CORP.
