Third-Row Buckle Removal/Installation

  1. Remove the bolts, and then remove the third-row buckle.

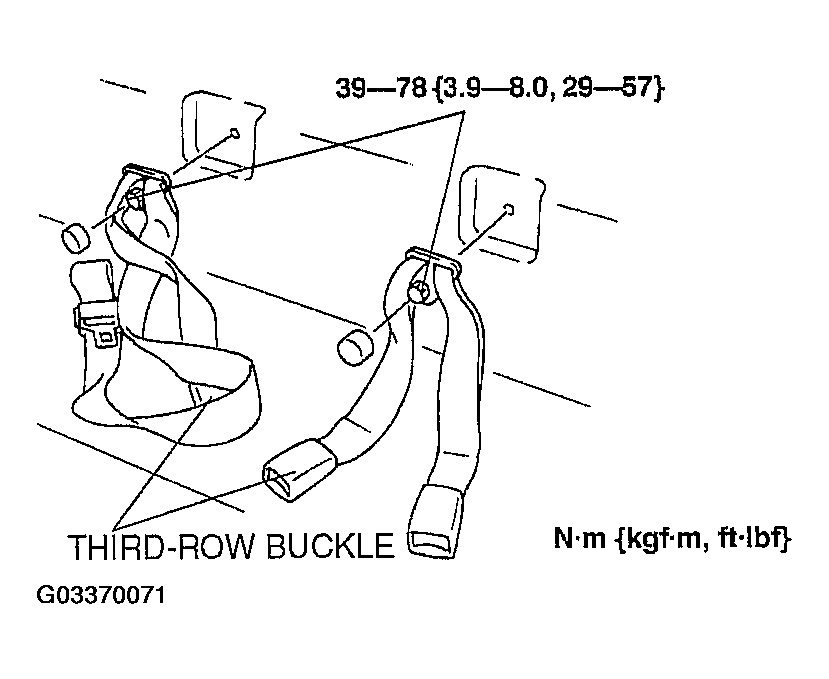

    Fig 1: Removing Bolt
    G03370071Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
