Mounting Bushing Assembly Note

Apply soapy water to the rubber part of the mounting bushing.
Press the mounting bushing until the mounting bushing end comes out completely from the gear housing using the SSTs and a press.

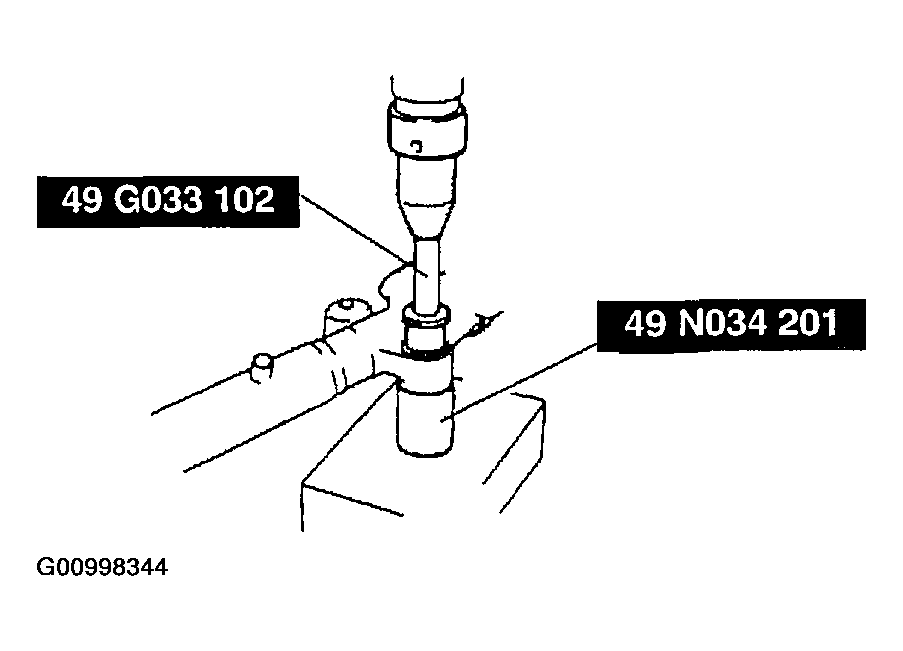

Fig 1: Pressing In Mounting Bushing
Courtesy of MAZDA MOTORS CORP.

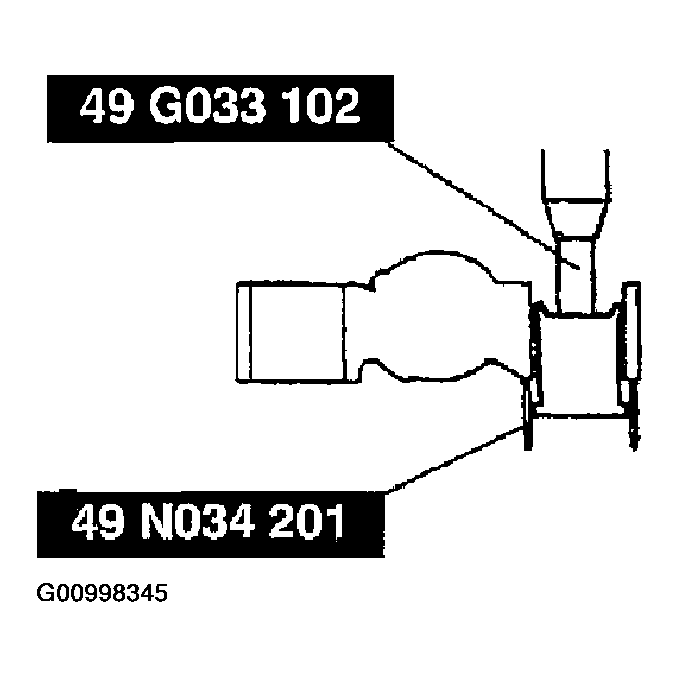

Fig 2: Pressing Mounting Bushing Beyond End Of Gear Housing
Courtesy of MAZDA MOTORS CORP.
Reverse the gear housing, then press the mounting bushing until the mounting bushing end comes out completely from the other side. At this time, mounting bushing end and steel pipe are aligned.

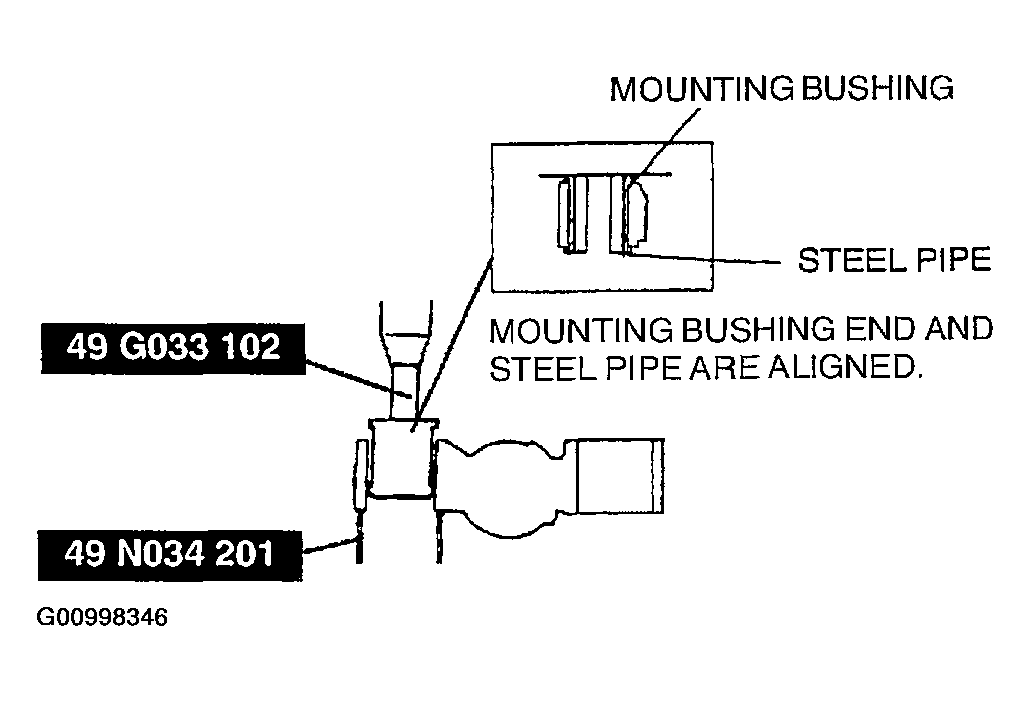

Fig 3: Aligning Mounting Bushing End & Steel Pipe

Courtesy of MAZDA MOTORS CORP.
