Rack Bushing Assembly Note

  1. After attaching the SSTs  to the end of the steering rack, install the rack bushing to the rack housing.

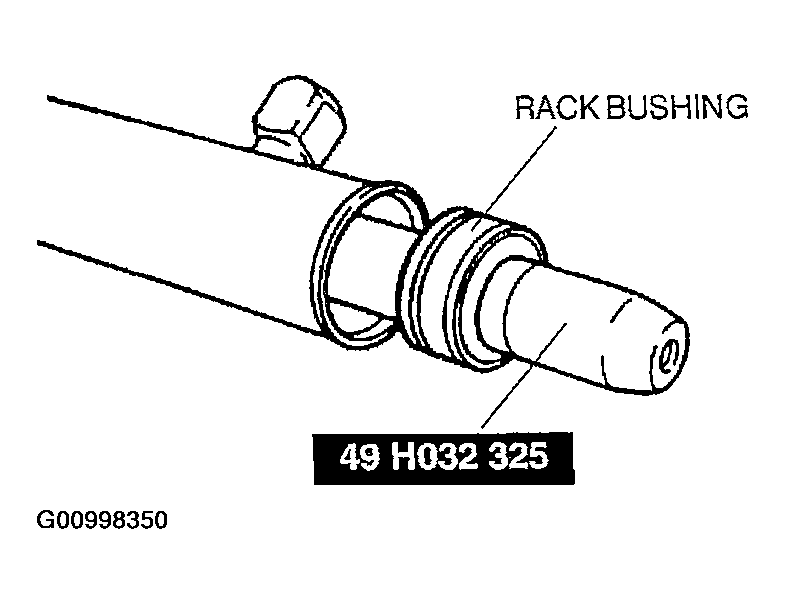

    Fig 1: Installing Rack Bushing To Rack Housing
    G00998350Courtesy of MAZDA MOTORS CORP.
