Rack Stopper Assembly Note

Using snap ring pliers, screw the rack stopper into the rack housing until the hole on the rack stopper lines up with the oblong hole on the rack housing.
Insert the clip into the rack stopper.

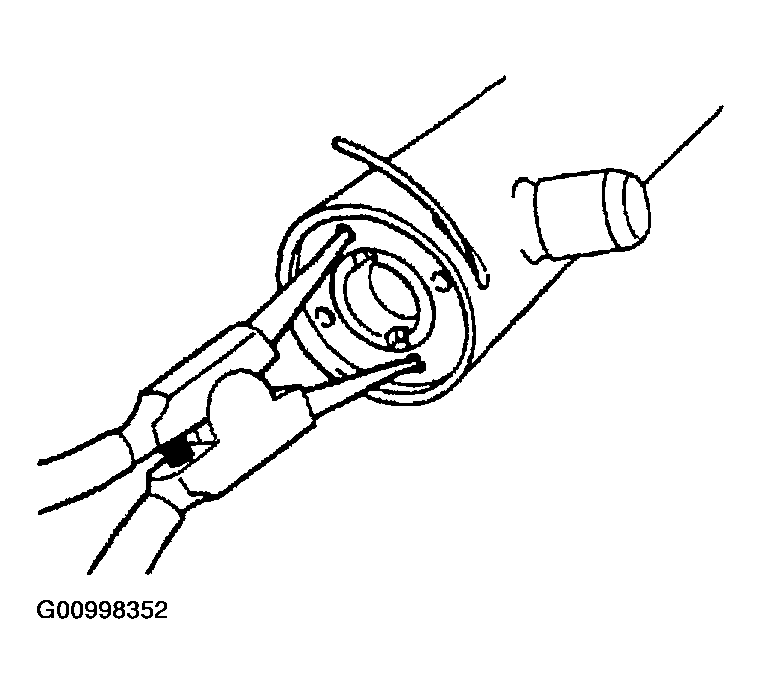

Fig 1: Inserting Clip Into Rack Stopper
Courtesy of MAZDA MOTORS CORP.
Install the rack stopper by turning the rack stopper clockwises.

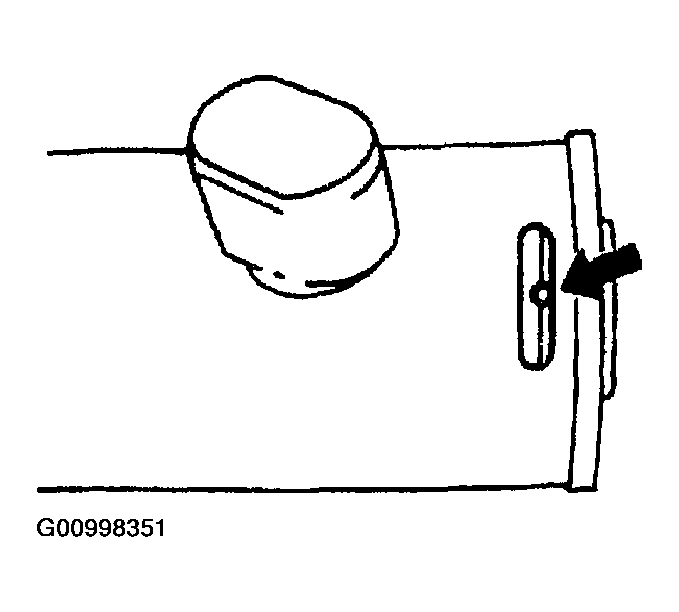

Fig 2: Installing Rack Stopper By Turning Rack Stopper
Courtesy of MAZDA MOTORS CORP.
Perform a hermetic sealing inspection.
1. Connect the SSTs to the power cylinder section of the gear housing.
2. Apply 53.3 kPa {400 mmHg, 15.7 in Hg} vacuum with a vacuum pump and verify that it is held for at least 30 seconds .
  - If the vacuum is not held, replace the oil seal.

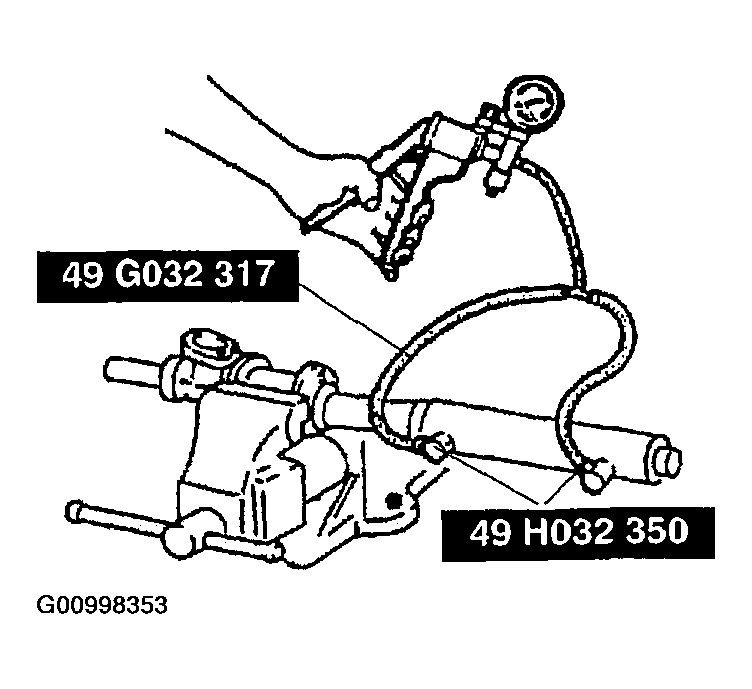

    Fig 3: Applying Vacuum To Gear Housing
    Courtesy of MAZDA MOTORS CORP.
