Steering Rack Assembly Note

  1. Take the vinyl that is included in the replace parts kit and place it over the rack threads.

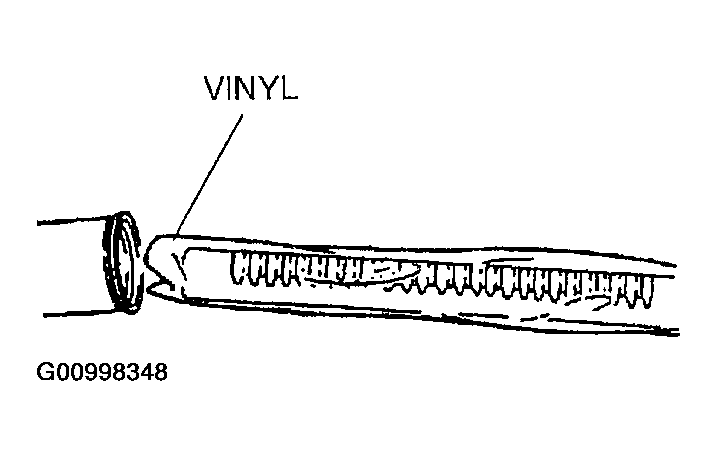

    Fig 1: Placing Vinyl Over Rack Threads
    G00998348Courtesy of MAZDA MOTORS CORP.
  2. Insert the steering rack into the gear housing.
