Tie Rod Assembly Note

  1. Secure the teeth section of the rack in a vise.
  2. Tighten the tie rod using the SST  .

    Tightening Torque

    78-98 N.m {8.0-9.9 kgf.cm, 58-72 ft.lbf}

  3. Caulk the washer.

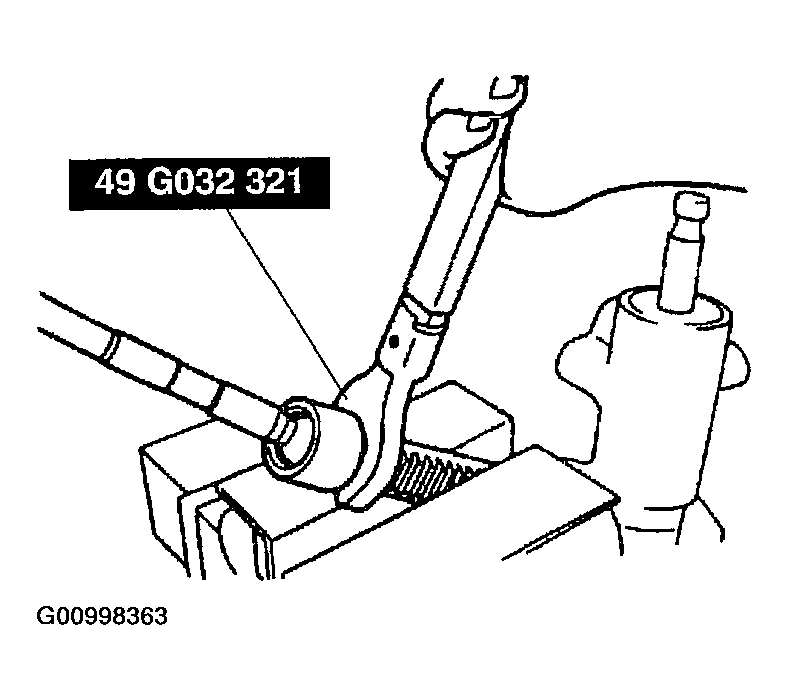

    Fig 1: Tightening Tie Rod
    G00998363Courtesy of MAZDA MOTORS CORP.
