Tie-Rod Assembly Note

  1. Assemble the tie-rod end so that the marks made before disassembly are aligned.

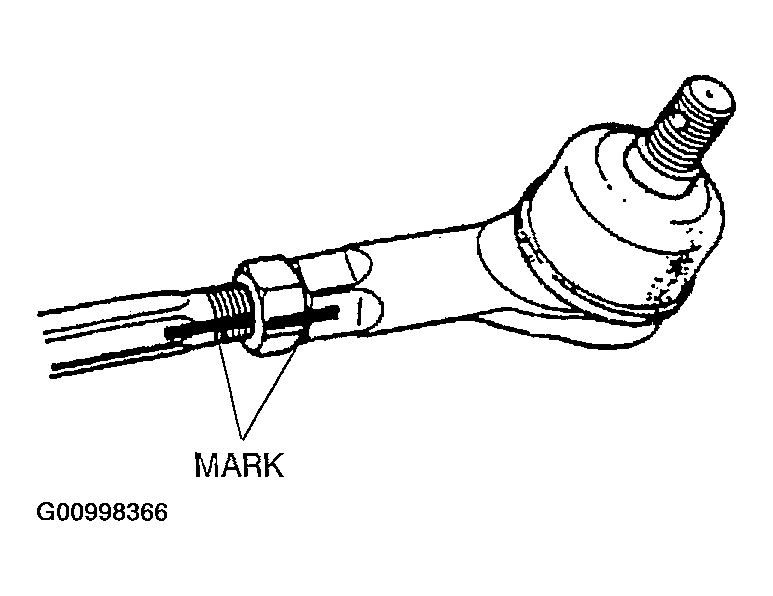

    Fig 1: Aligning Tie-Rod End & Tie-Rod Marks
    G00998366Courtesy of MAZDA MOTORS CORP.
