Tie-Rod End Boot Assembly Note

  1. Wipe the grease of the ball joint.
  2. Put a small amount of lithium-based grease into a new dust boot.
  3. Install the dust boot onto the tie-rod end using the SST  and a press.
  4. Wipe away any excess grease.

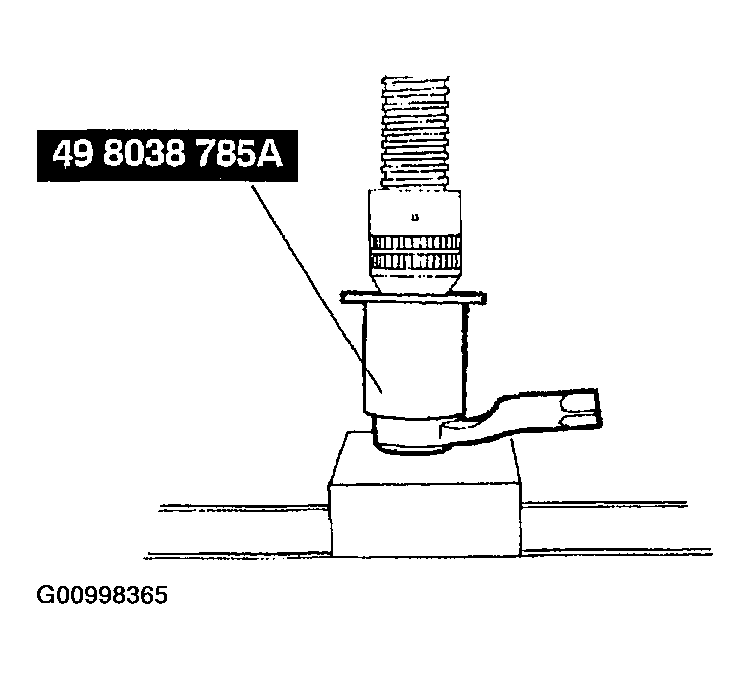

    Fig 1: Installing Dust Boot Onto Tie-Rod End
    G00998365Courtesy of MAZDA MOTORS CORP.
