Selector Cable Installation Note

Shift the selector lever and manual shaft to P position.
CAUTION:
- Bending the selector cable as shown in the figure will damaged the cable and cause it to become loose during shifting. When handling and installing the selector cable, hold it straight.

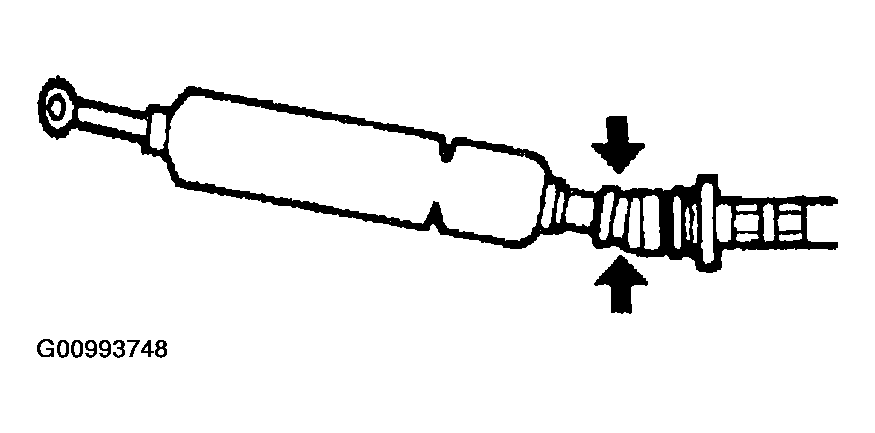

  Fig 1: Locating Bending Portion Of Selector Cable
  Courtesy of MAZDA MOTORS CORP.
Install the selector cable to the manual shaft lever so that the spring side of the selector cable end faces upward.
Install the selector cable to the steering shaft bracket securely.
Install the selector cable to the selector lever bolt.

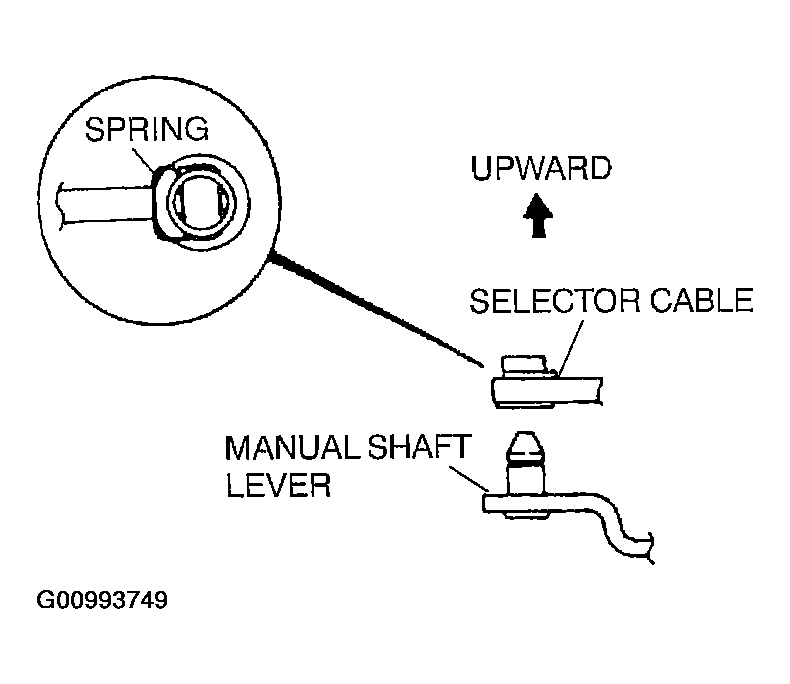

Fig 2: Installing Selector Cable To Manual Shaft
Courtesy of MAZDA MOTORS CORP.
Install nut A onto the selector lever bolt temporarily.
Pull the selector lever to the R position side gate of P position, and tighten nut A.

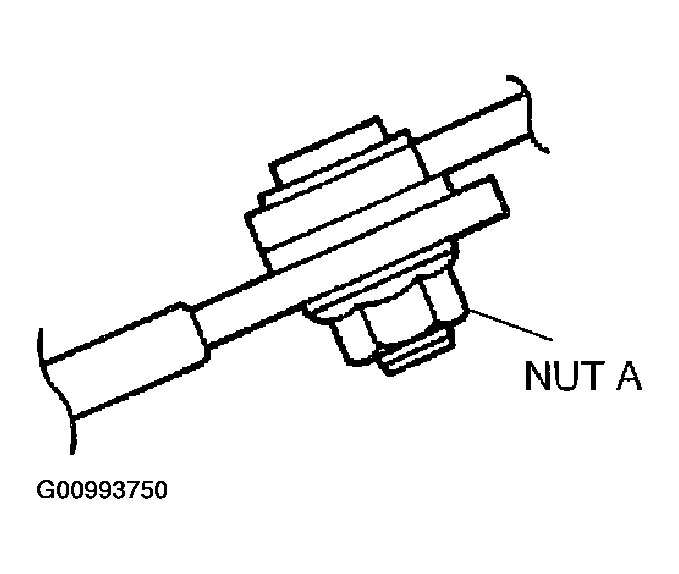

Fig 3: Locating Selector Cable Adjusting Nut
Courtesy of MAZDA MOTORS CORP.

Tightening Torque

16-22 N.m {1.6-2.3 kgf.m, 12-16 ft.lbf}
Verify that the selector lever bolt end is exposed from the nut.

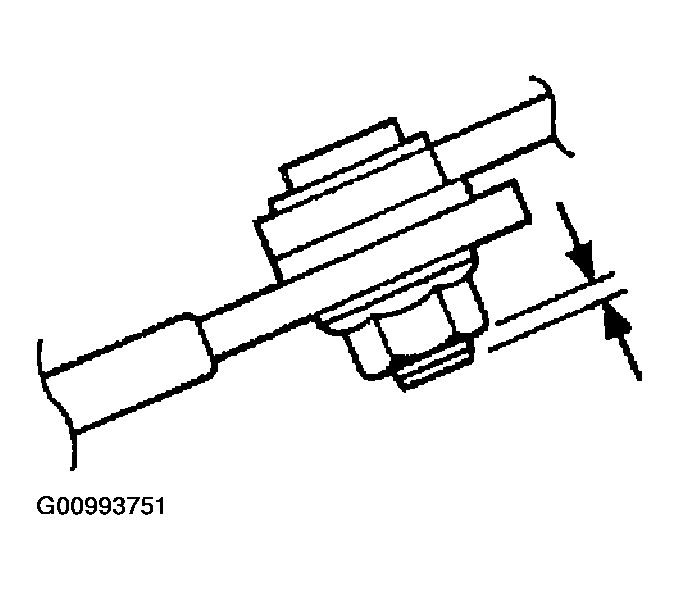

Fig 4: Verify Selector Lever Bolt End Exposed
Courtesy of MAZDA MOTORS CORP.
