Shift-Lock Relay Inspection

  1. Disconnect the negative battery cable.
  2. Disconnect the shift-lock relay connector.
  3. Inspect the voltage and continuity between the shift-lock relay terminals.

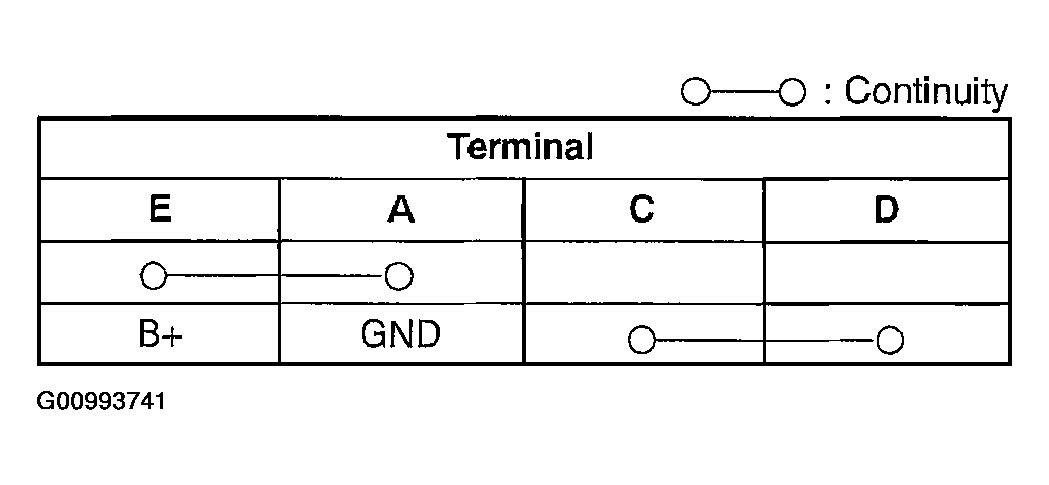

    Fig 1: Shift-Lock Relay Continuity Specifications
    G00993741Courtesy of MAZDA MOTORS CORP.

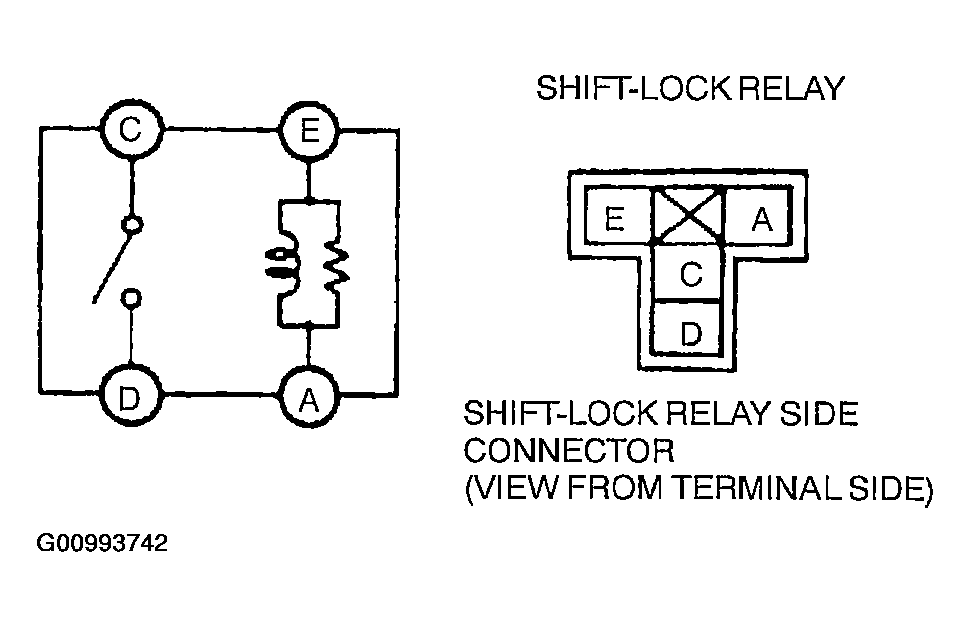

    Fig 2: Identifying Shift-Lock Relay Terminals
    G00993742Courtesy of MAZDA MOTORS CORP.
  4. Connect the shift-lock relay connector.
  5. Connect the negative battery cable.
