No. 23: Transaxle Overheats: Notes

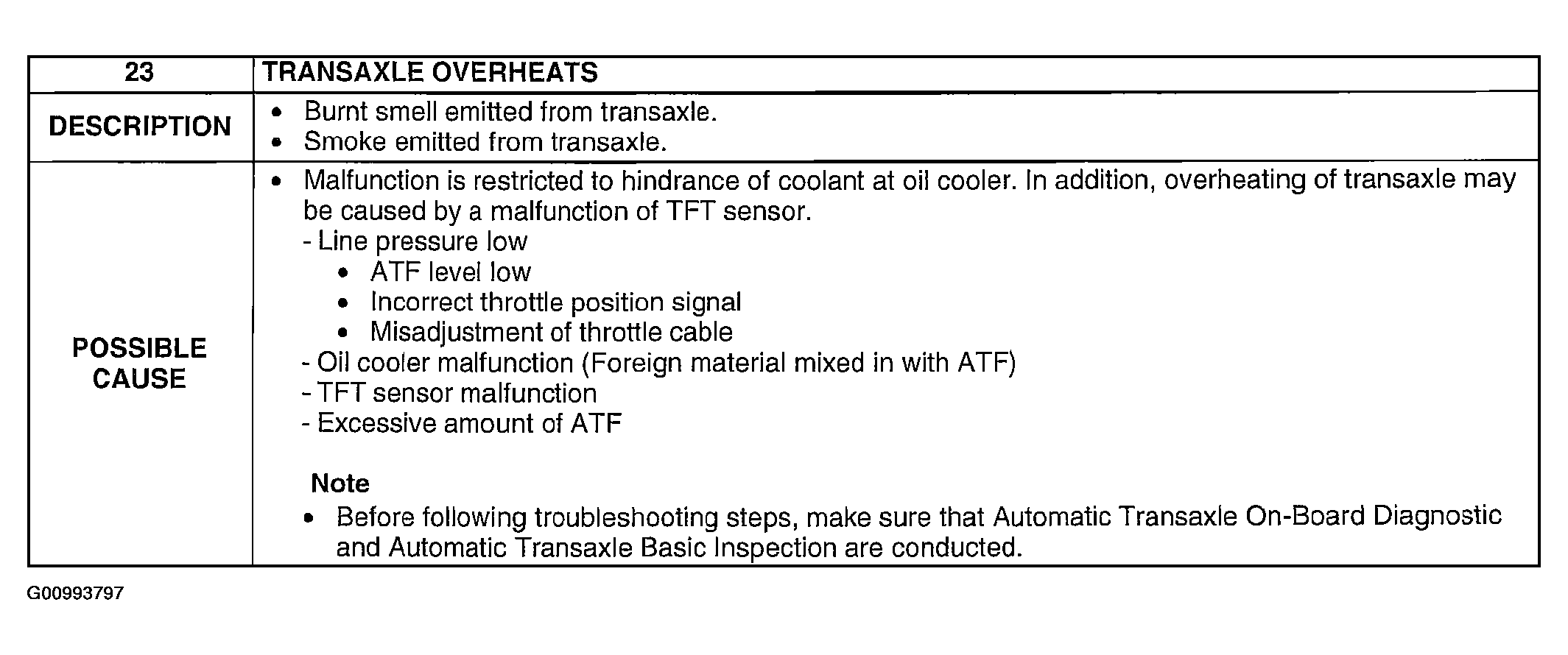

Fig 1: No. 23: Transaxle Overheats - Possible Cause

G00993797

Courtesy of MAZDA MOTORS CORP.
