DTC U0101: Pcm Cannot Receive Any Signals From TCM: Notes

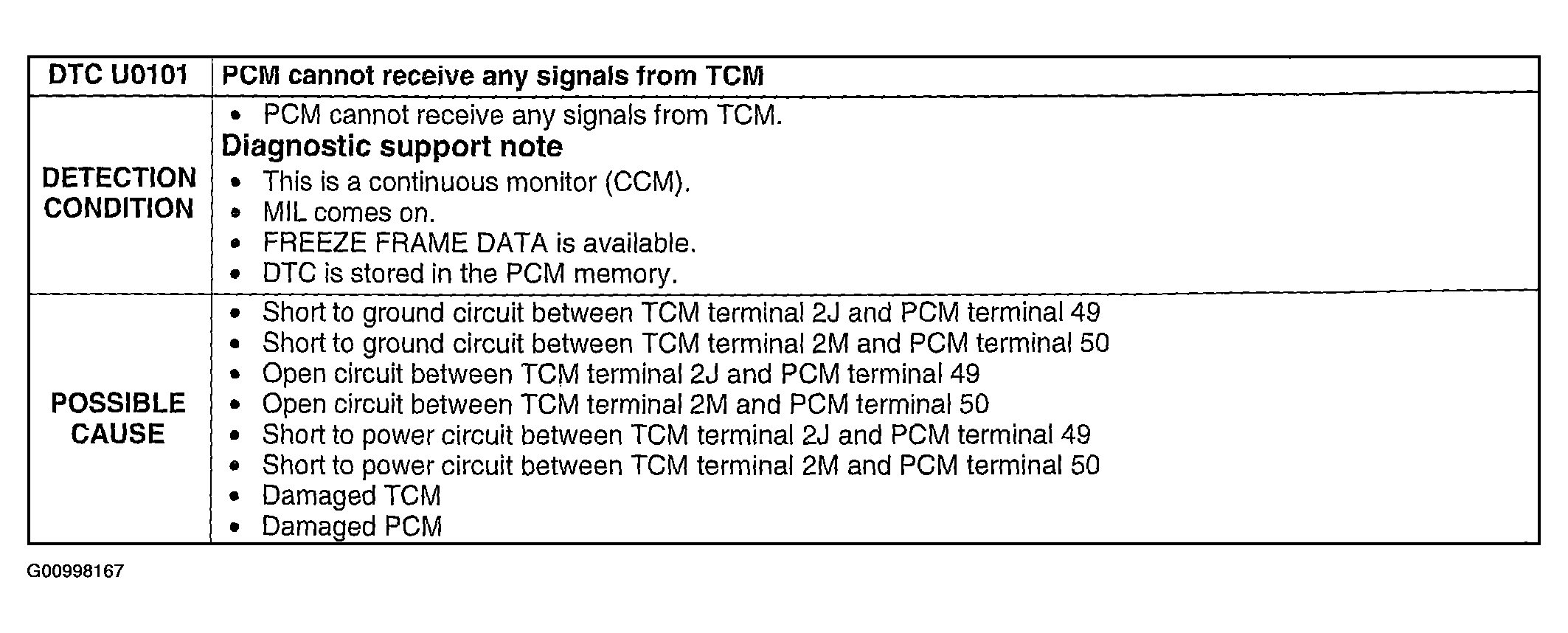

Fig 1: DTC U0101 Detection Condition & Possible Causes Chart
G00998167Courtesy of MAZDA MOTORS CORP.
