Anti-Lock Brake System Location Index

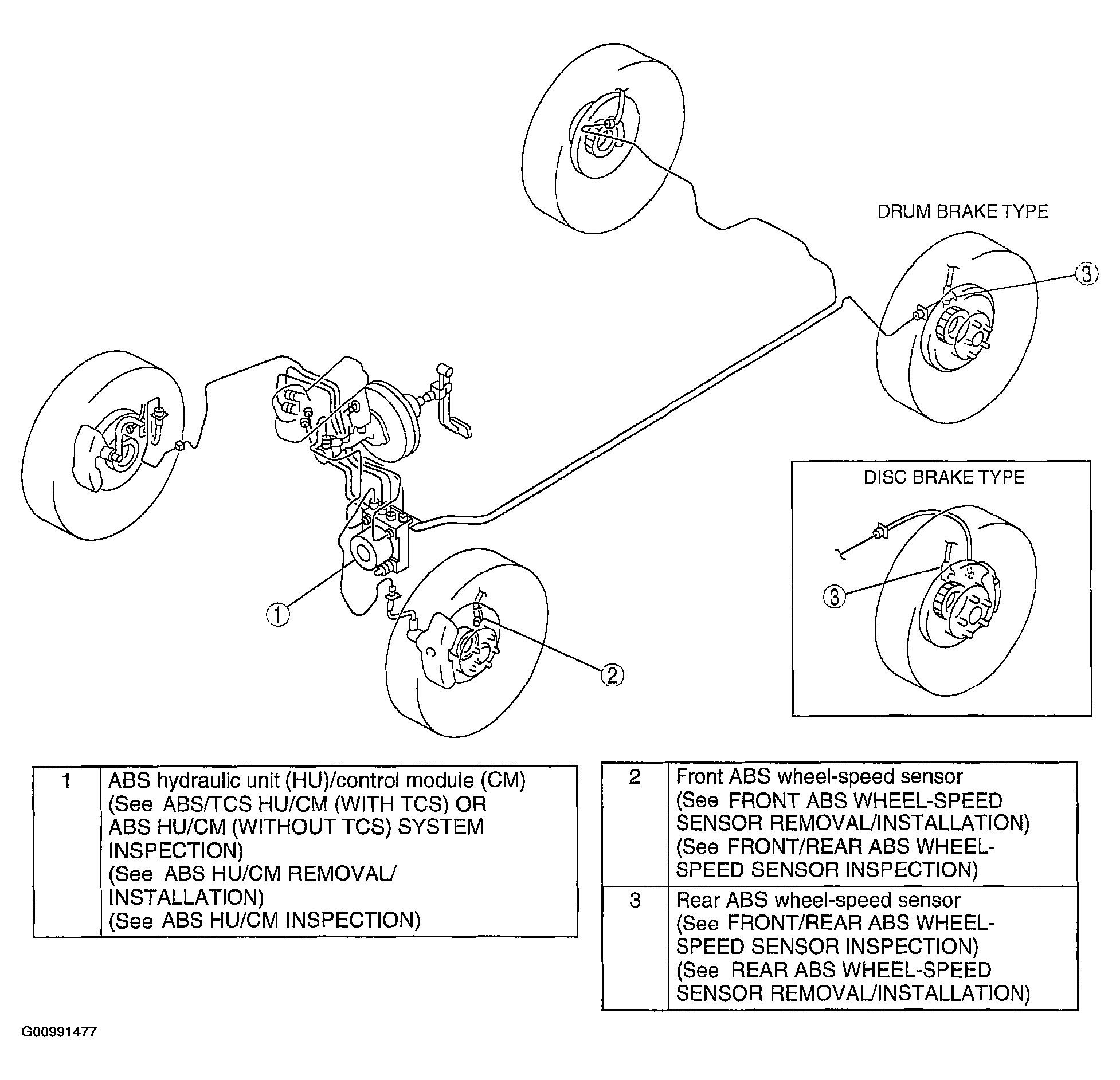

Fig 1: Anti-lock Brake System Location Index
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
