Rear Console

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the table.

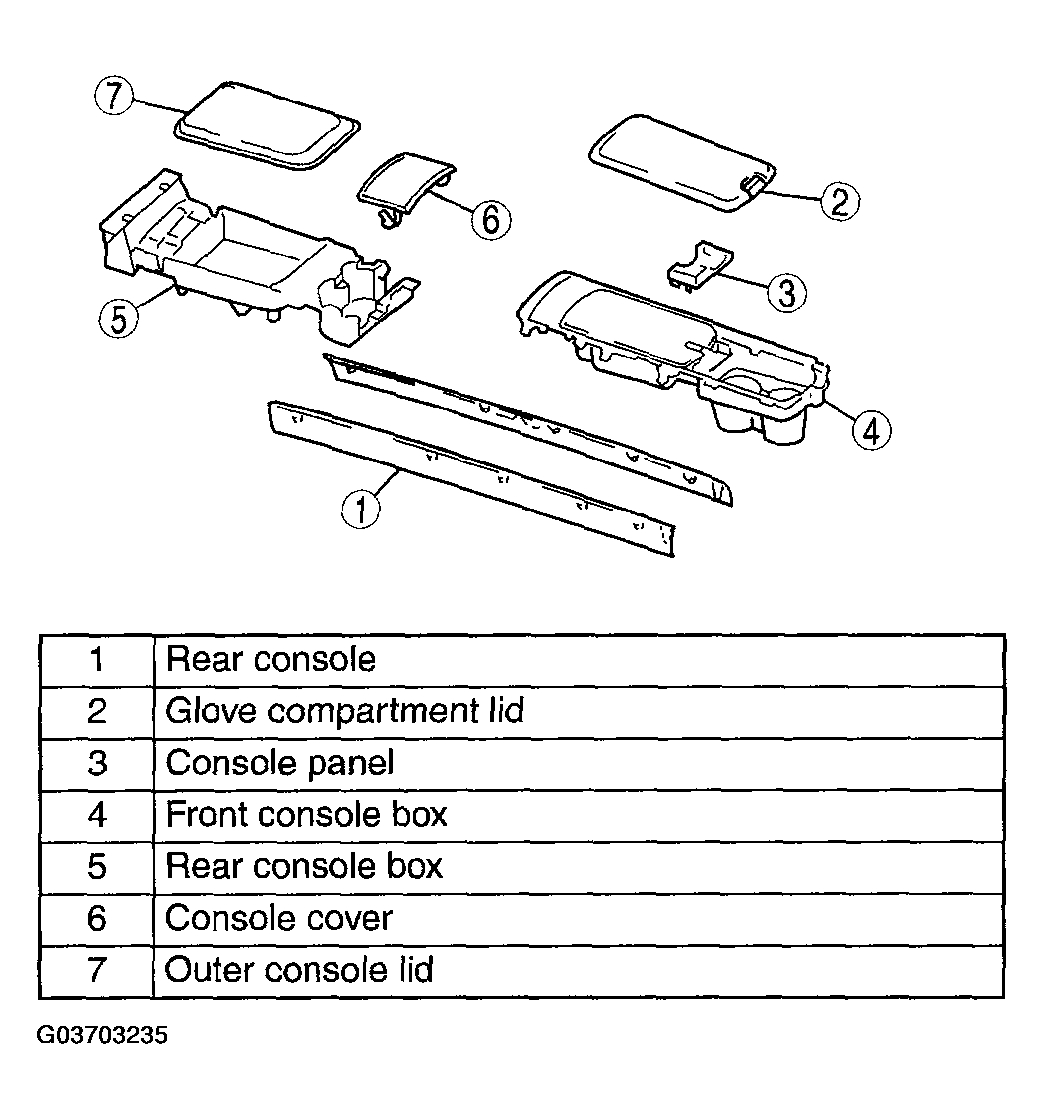

    Fig 1: Identifying Disassemble Order Of Rear Console
    G03703235Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
