Normal Scan Data Values

PID/Data Monitor and Record Procedure
1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the steering column.
2. Access and monitor PIDs by WDS or equivalent.

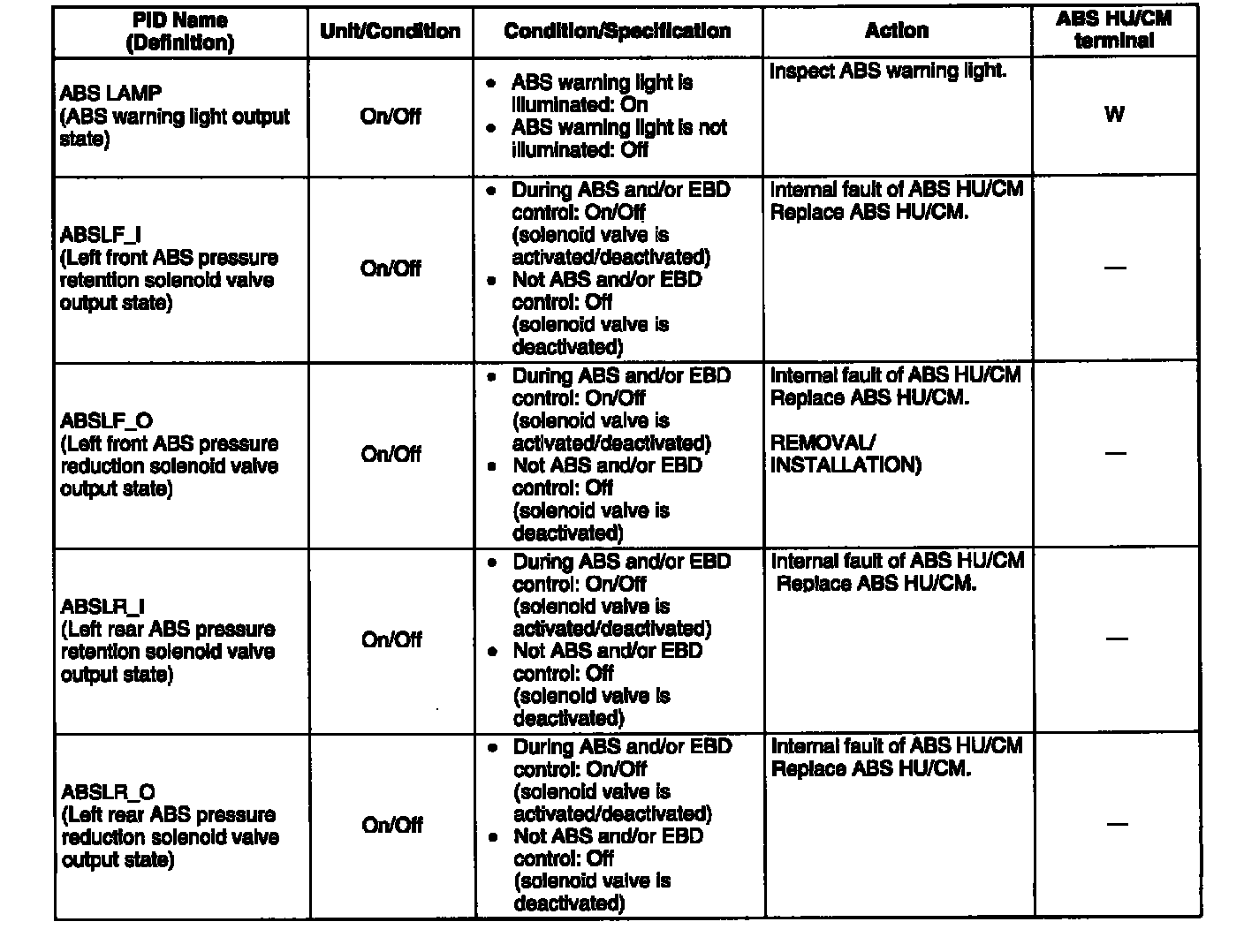

Part 1:

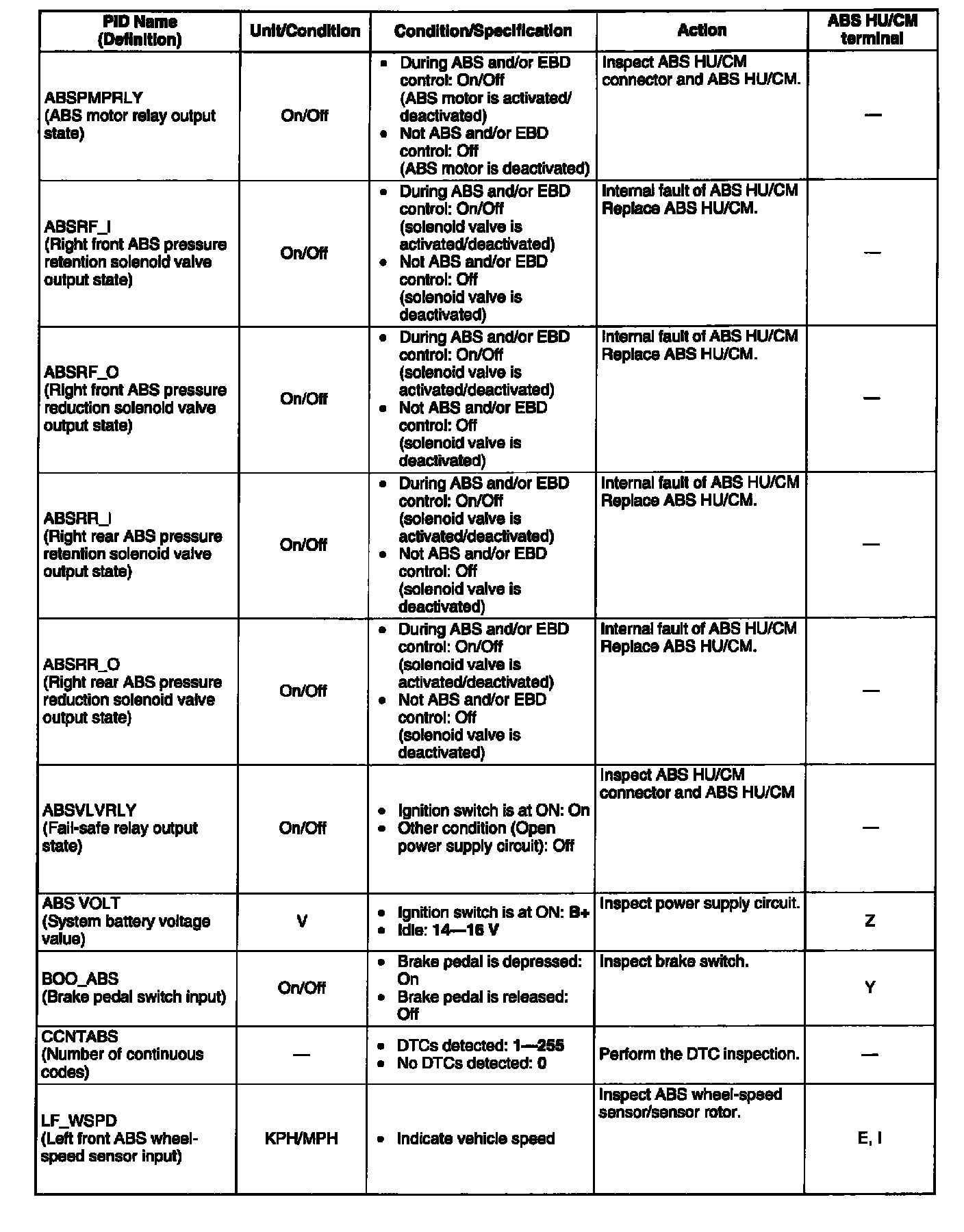

Part 2:

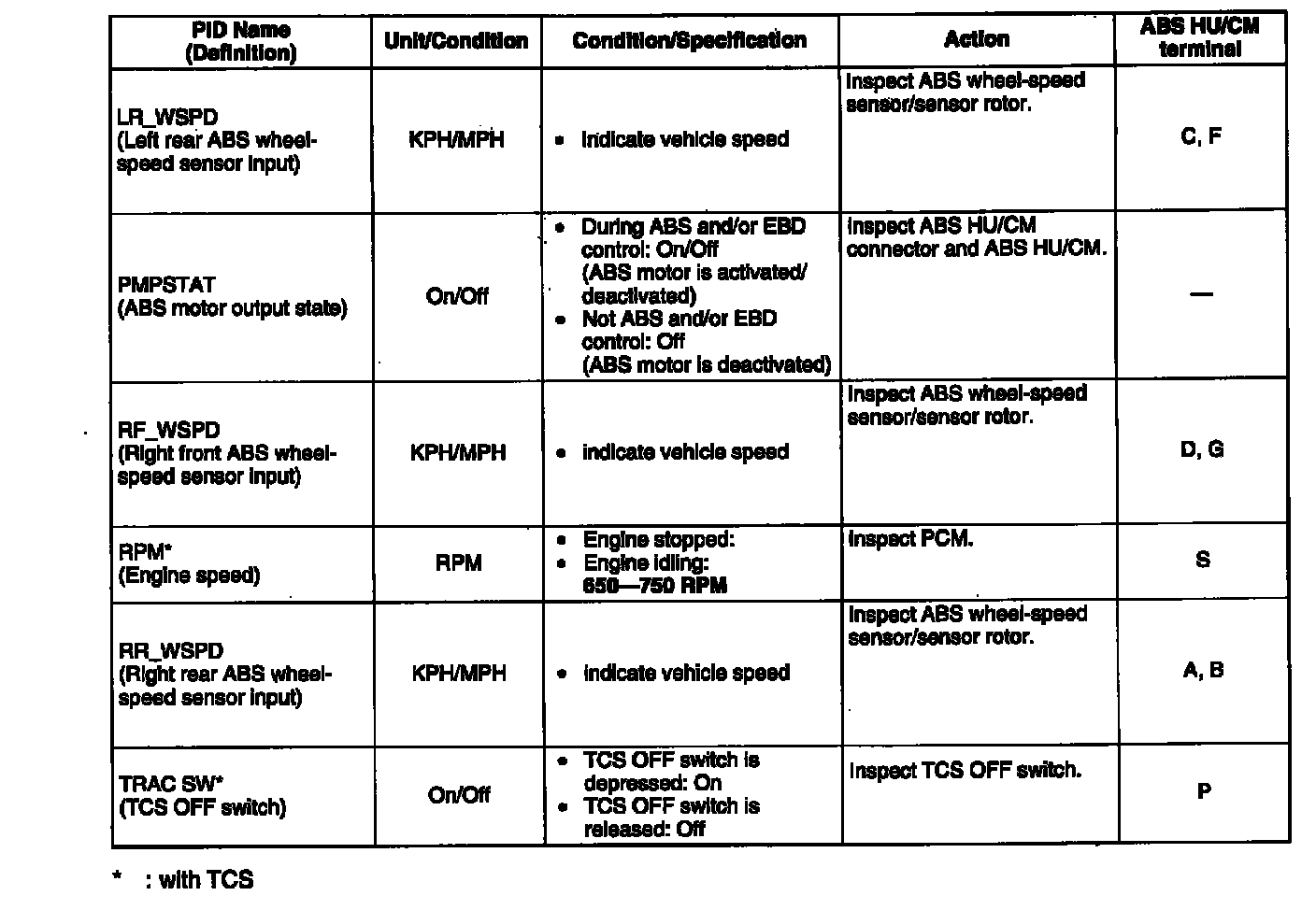

Part 3:





PID/DATA Monitor Table
