PID/Data Monitor Table (Reference)

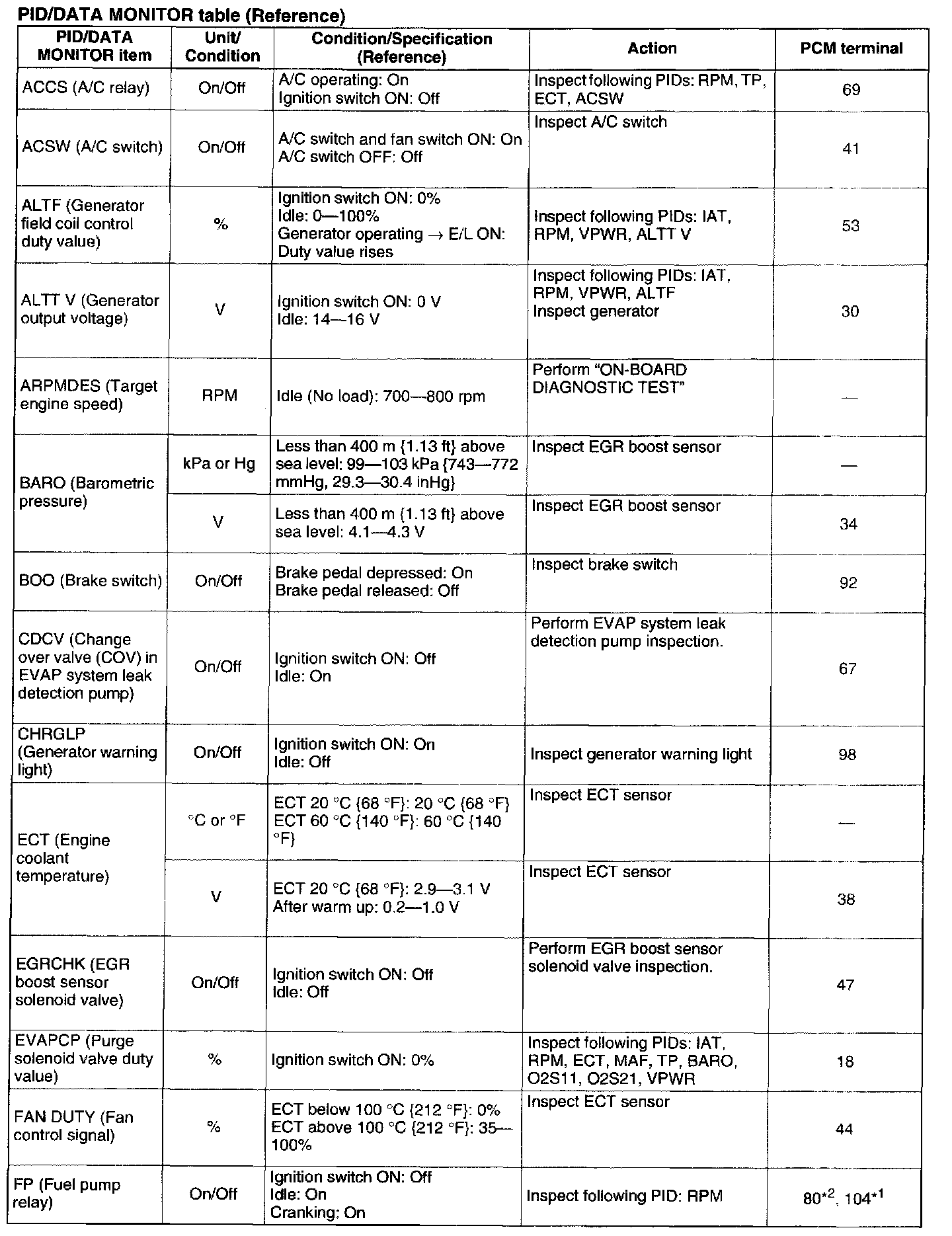

PID/DATA MONITOR Table (Reference) Part 1:

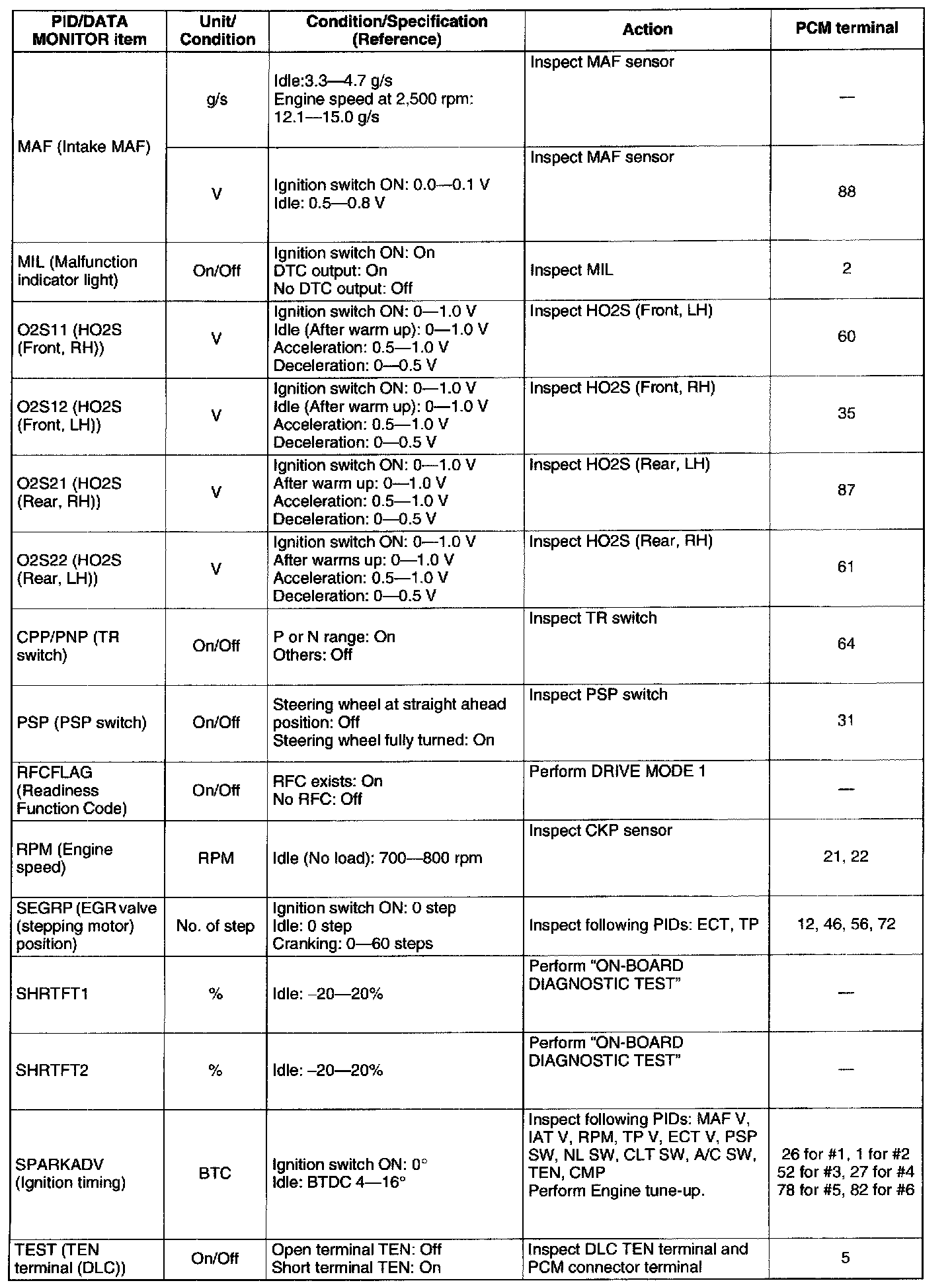

PID/DATA MONITOR Table (Reference) Part 2:

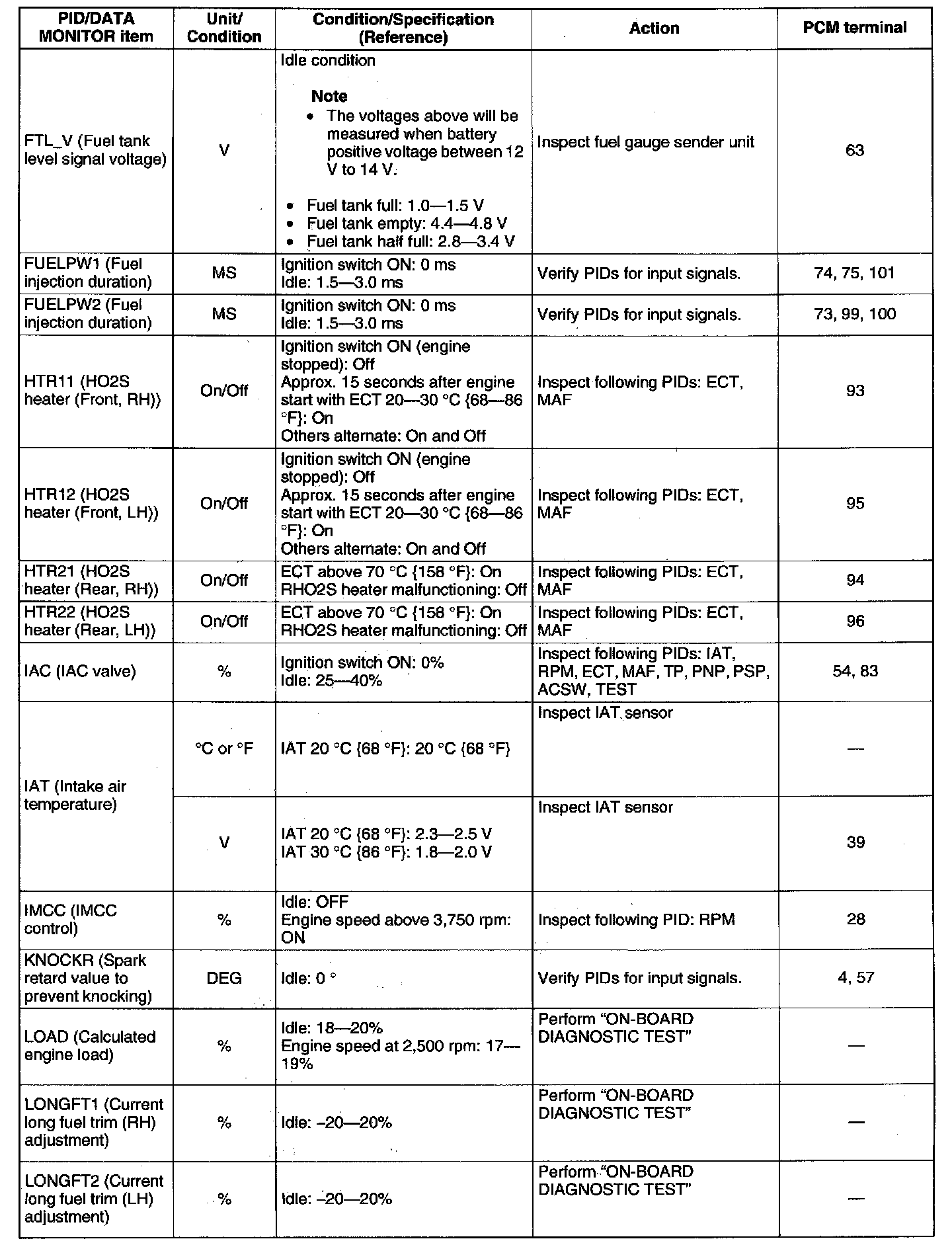

PID/DATA MONITOR Table (Reference) Part 3:

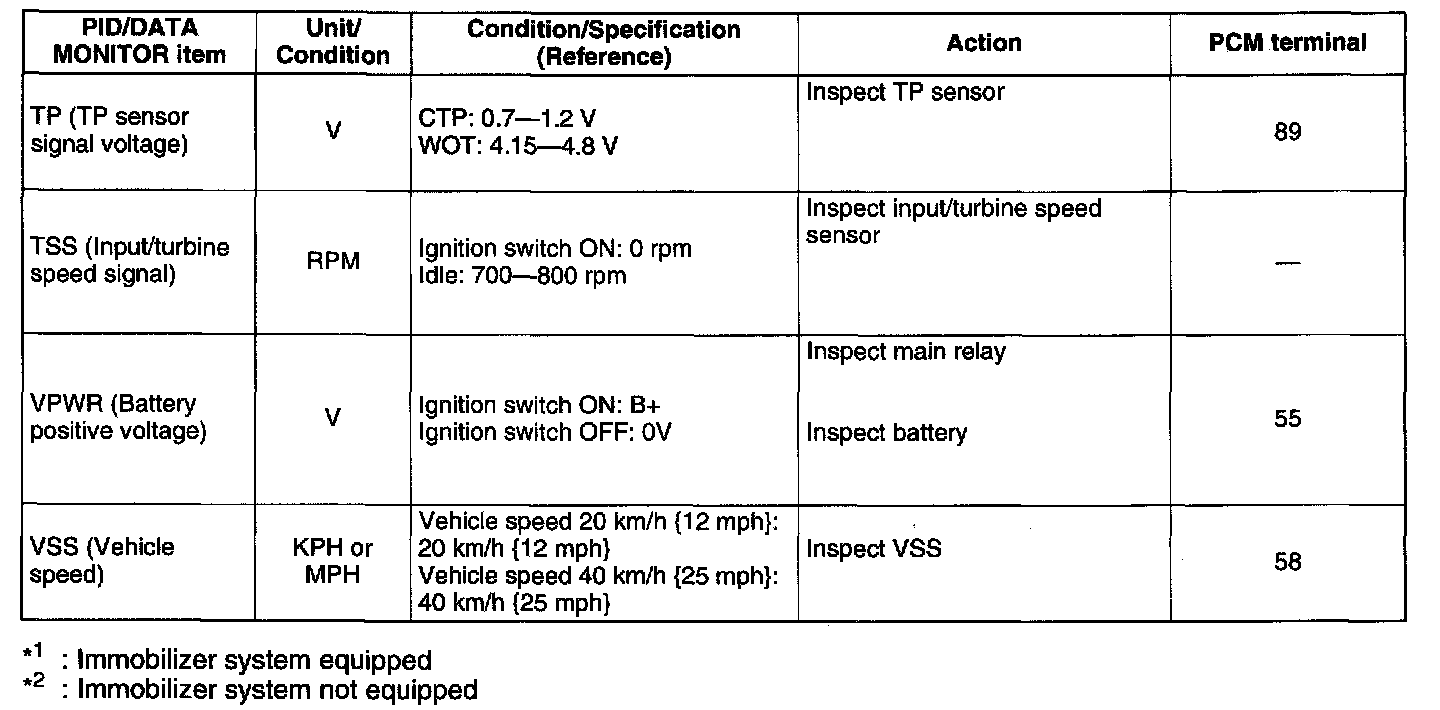

PID/DATA MONITOR Table (Reference) Part 4:
