Cruise Control Switch Inspection

Remove the combination switch. See COMBINATION SWITCH REMOVAL/INSTALLATION .
Measure the resistance between the cruise control switch terminals using an ohmmeter.

If not as specified, replace the wiper lever.

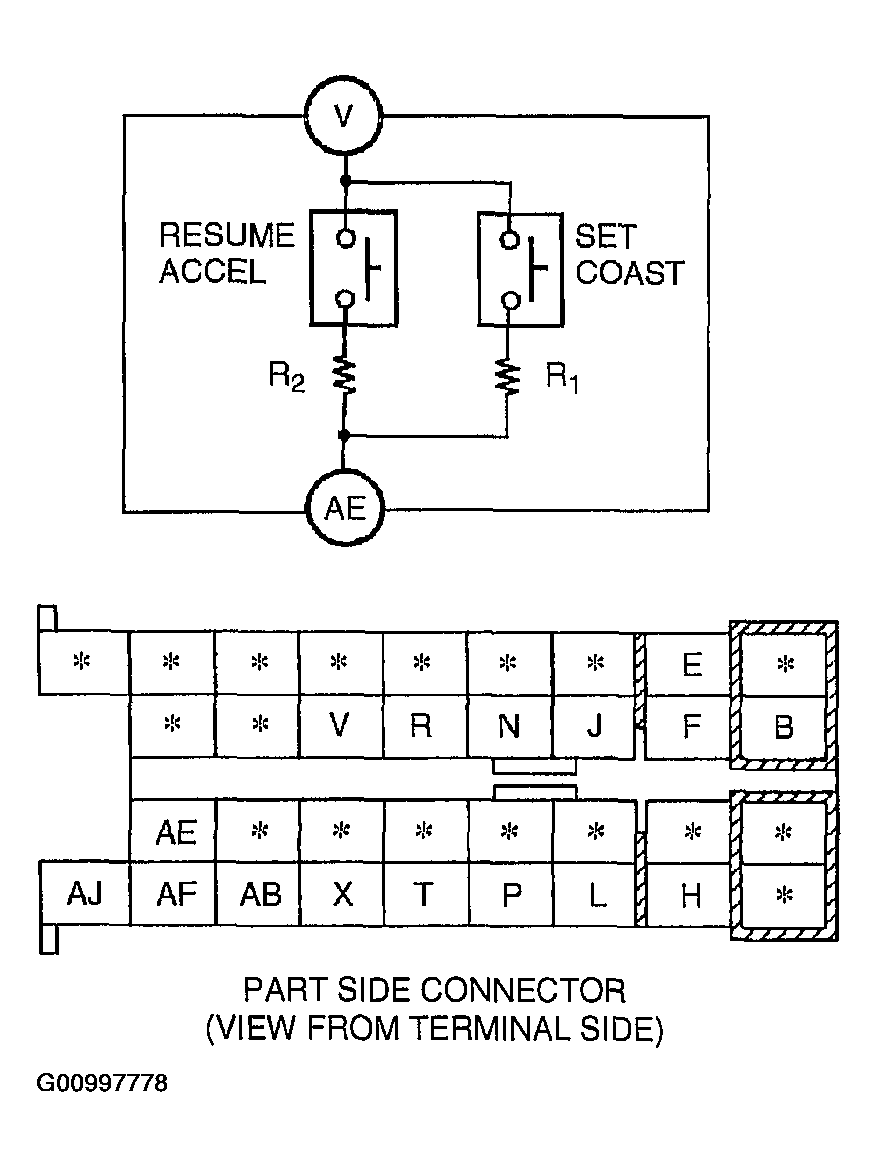

Fig 1: Measuring Resistance Between Cruise Control Switch Terminals
Courtesy of MAZDA MOTORS CORP.

Fig 2: Measuring Resistance Between Part Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.
