Base Removal

  1. Remove the rearview mirror.
  2. Wind each end of the SST  (piano wire) around a bar.
    WARNING:
    • Using the SST (piano wire) with bare hands can cause injury. Always wear gloves when using the SST (piano wire).

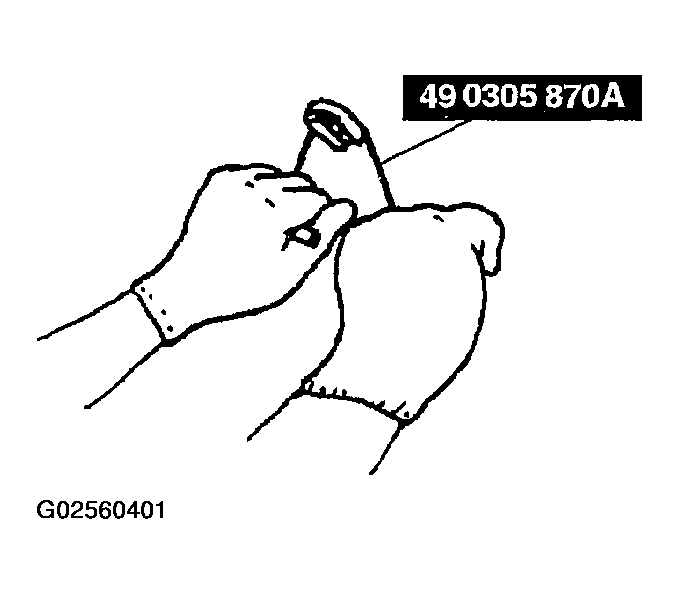

    Fig 1: Cutting Through Sealant To Remove Base
    G02560401Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Use the entire length of the SST (piano wire) to prevent it from breaking when cutting through the sealant.
  3. Saw through the sealant to remove the base.
