Power Window Motor Inspection

Remove the power window motor. (See POWER WINDOW REGULATOR DISASSEMBLY .)
Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
- If not as specified, replace the power window motor.

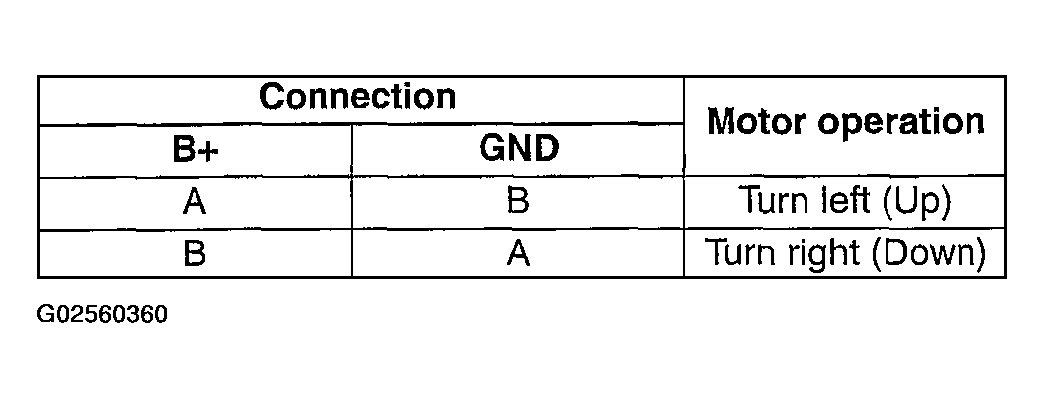

  Fig 1: Power Window Motor Connection & Operation Table
  Courtesy of MAZDA MOTORS CORP.

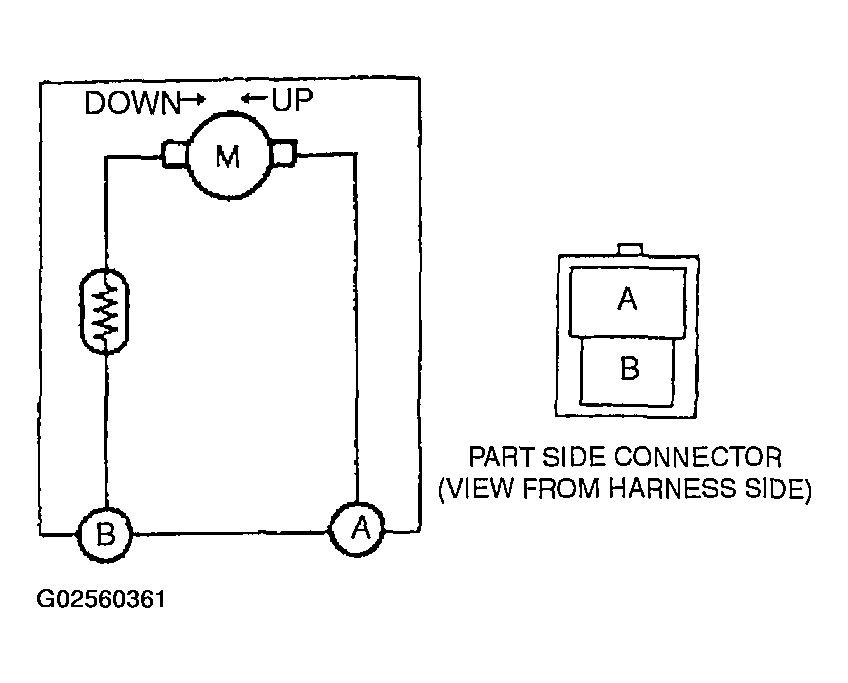

  Fig 2: Identifying Power Window Motor Terminals Connection
  Courtesy of MAZDA MOTORS CORP.
