Power Window Regulator Removal/Installation

  1. Remove the front glass guide. (See DOOR GLASS AND GUIDE REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the table.
    REMOVAL ORDER OF POWER WINDOW REGULATOR

    Removal Order Component
    1 Connector
    2 Nut
    3 Power window regulator
  4. Install in the reverse order of removal.
  5. Adjust the door glass. (See DOOR GLASS ADJUSTMENT .)

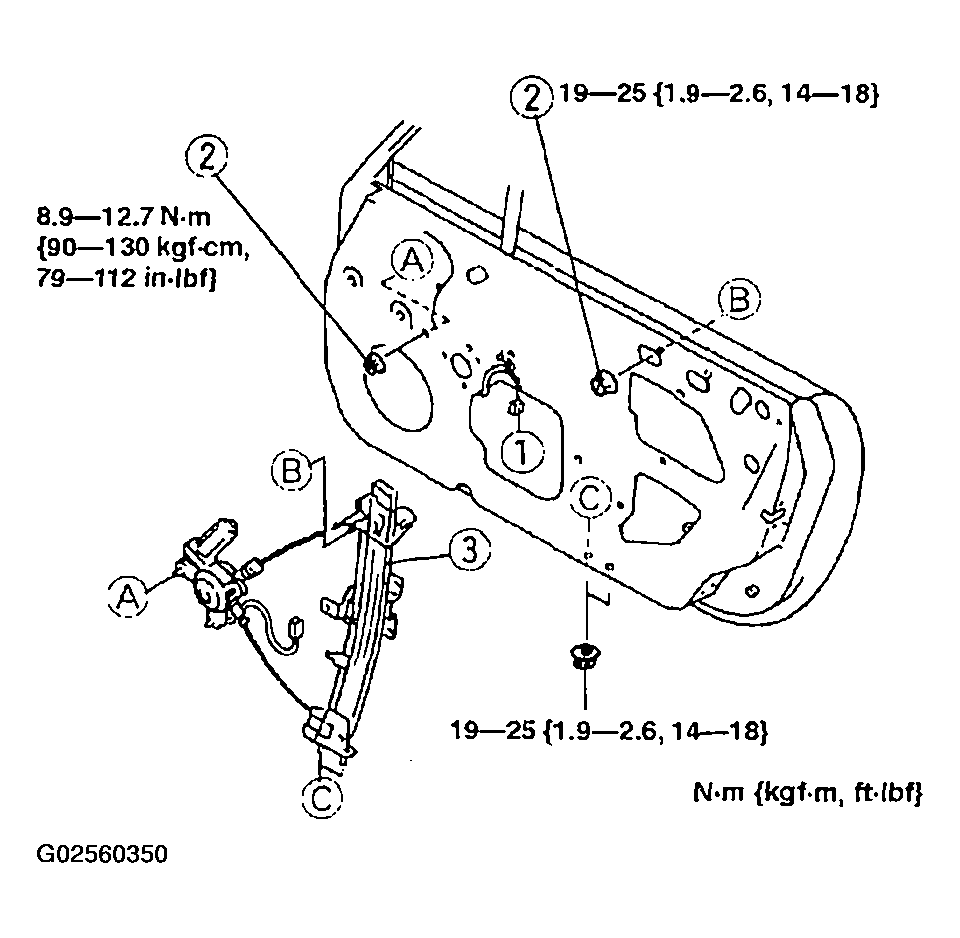

    Fig 1: Removing/Installing Power Window Regulator
    G02560350Courtesy of MAZDA MOTORS CORP.
