Cam Ring Assembly Note

  1. Install the cam ring with the identification mark facing downward.

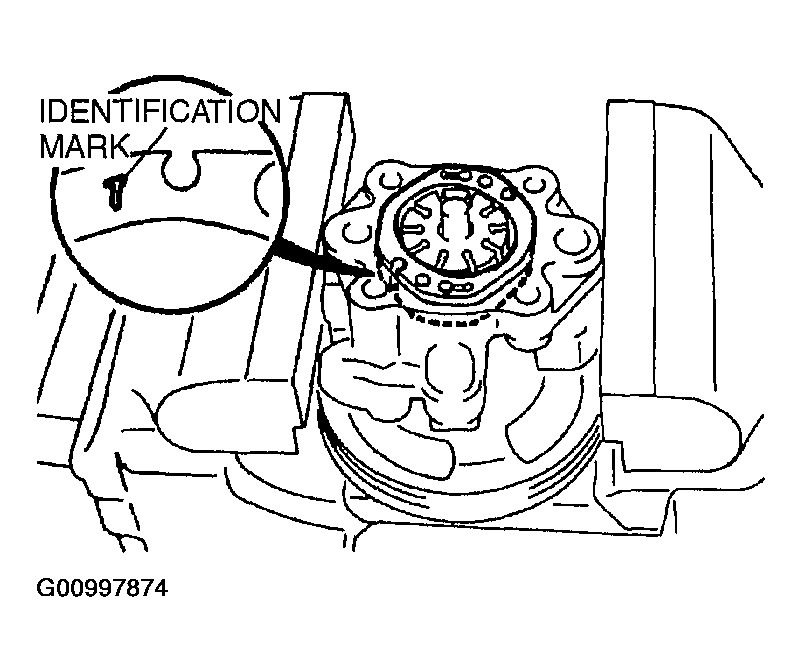

    Fig 1: Installing The Cam Ring
    G00997874Courtesy of MAZDA MOTORS CORP.
