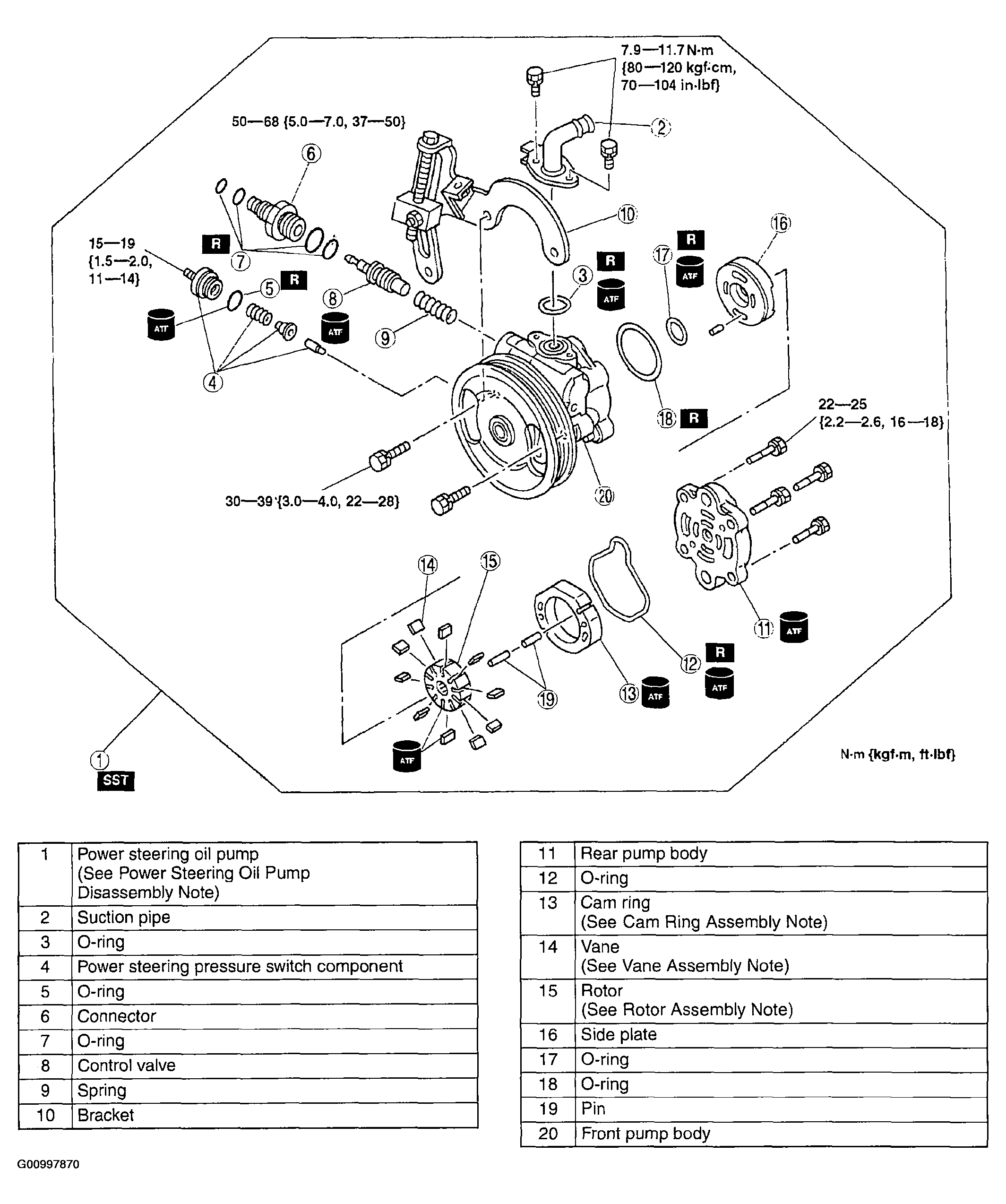

Power Steering Oil Pump Disassembly/Assembly: Notes
- The following procedure is for replacement of the O-rings only. Replace the pump component if other repairs are necessary.
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
Courtesy of MAZDA MOTORS CORP.
