Rotor Assembly Note

  1. Install the rotor with the identification mark facing upward.

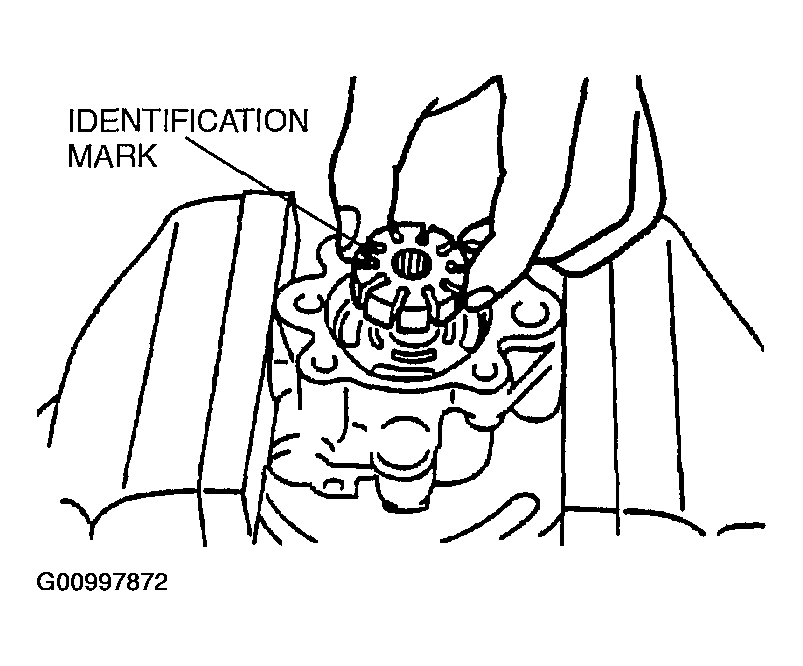

    Fig 1: Installing The Rotor
    G00997872Courtesy of MAZDA MOTORS CORP.
