Vane Assembly Note

  1. Place the vanes in the rotor with the rounded edges contacting the cam.

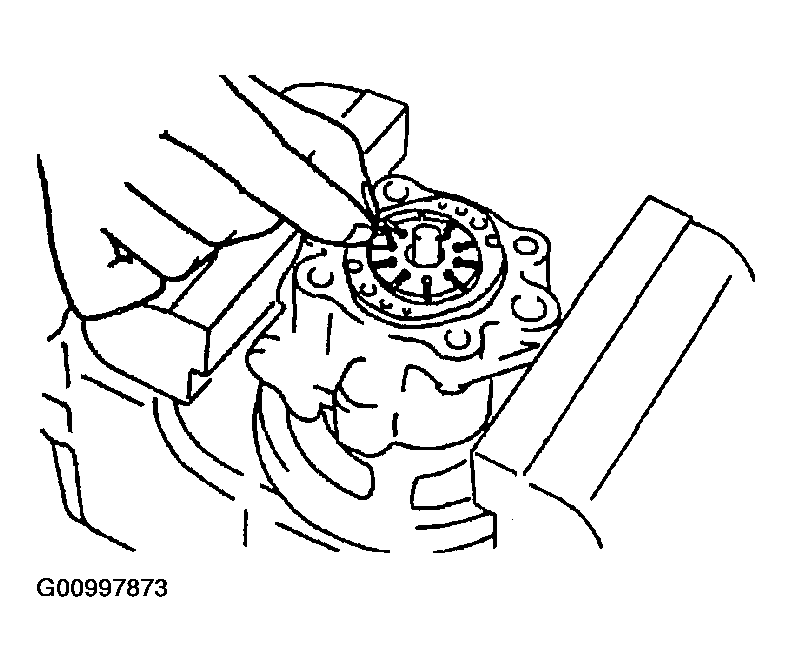

    Fig 1: Installing The Vanes In Rotor
    G00997873Courtesy of MAZDA MOTORS CORP.
