Adjusting Cover Assembly Note

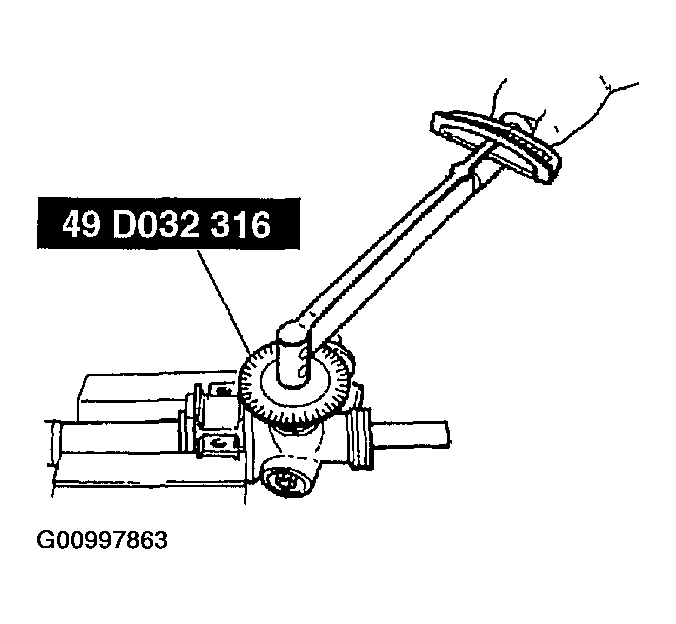

- Set the rack to the center position.
- Tighten the adjusting cover to a torque of 4.9 N.m {50 kgfCm, 43 in.lbf}
three times, then return it 25°
using the SST.
- Apply sealant to the threads of the locknut.
- Attach the locknut.
Courtesy of MAZDA MOTORS CORP.

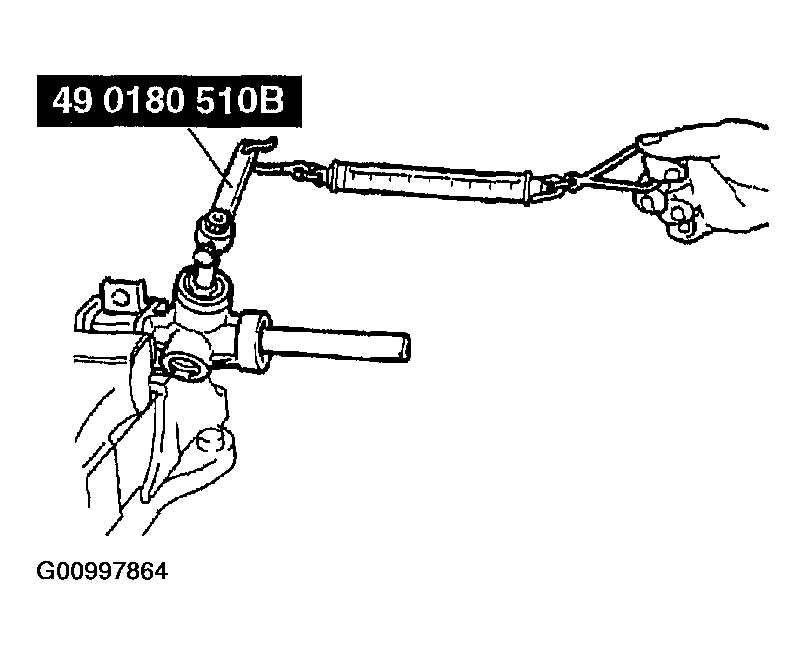

- Measure the pinion torque using the SST
and a pull scale.
- If not as the specified, repeat steps 2 through 5
.
- Standard Center of rack +/-90° 1.0 1.1 N.m {10-12 kgfCm, 8.7-10.4 in.lbf}
- Pull scale reading 10-11 N {1.0-1.2 kgf, 2.2-2.4 lbf}
Courtesy of MAZDA MOTORS CORP.
- Install the locknut using the SST
(49 BO32 320).
- Tightening torque 40-49 N.m {4.0-5.0 kgf.m, 29-36 ft.lbf}
