Tie-rod End Boot Assembly Note

  1. Wipe the grease off the ball joint.
  2. Put a small amount of lithium-based grease into a new dust boot.
  3. Install the dust boot onto the tie-rod end using the SST  and a press.
  4. Wipe away any excessive grease.

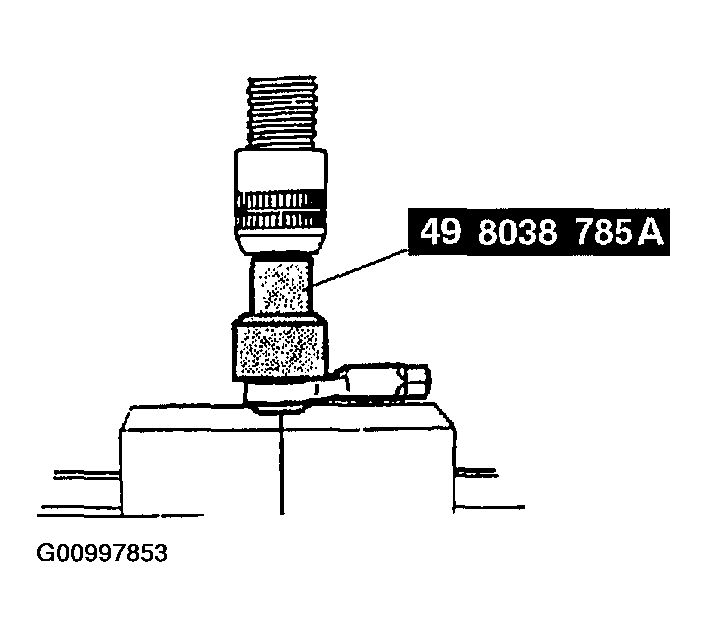

    Fig 1: Installing Tie-Rod End Boot
    G00997853Courtesy of MAZDA MOTORS CORP.
