Upper Bearing Assembly Note

  1. Apply grease to a new upper bearing.
  2. Press in the upper bearing using the SST.

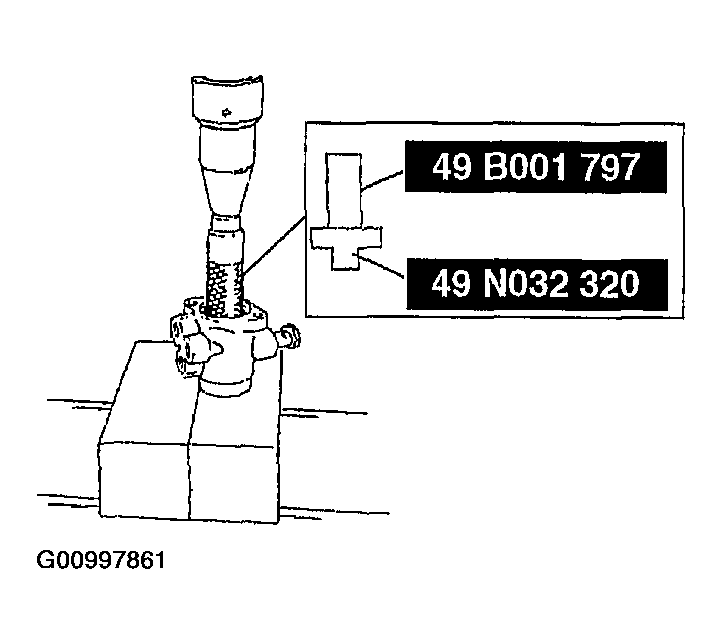

    Fig 1: Pressing Upper Bearing Using Special Service Tool
    G00997861Courtesy of MAZDA MOTORS CORP.
