Steering Shaft Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

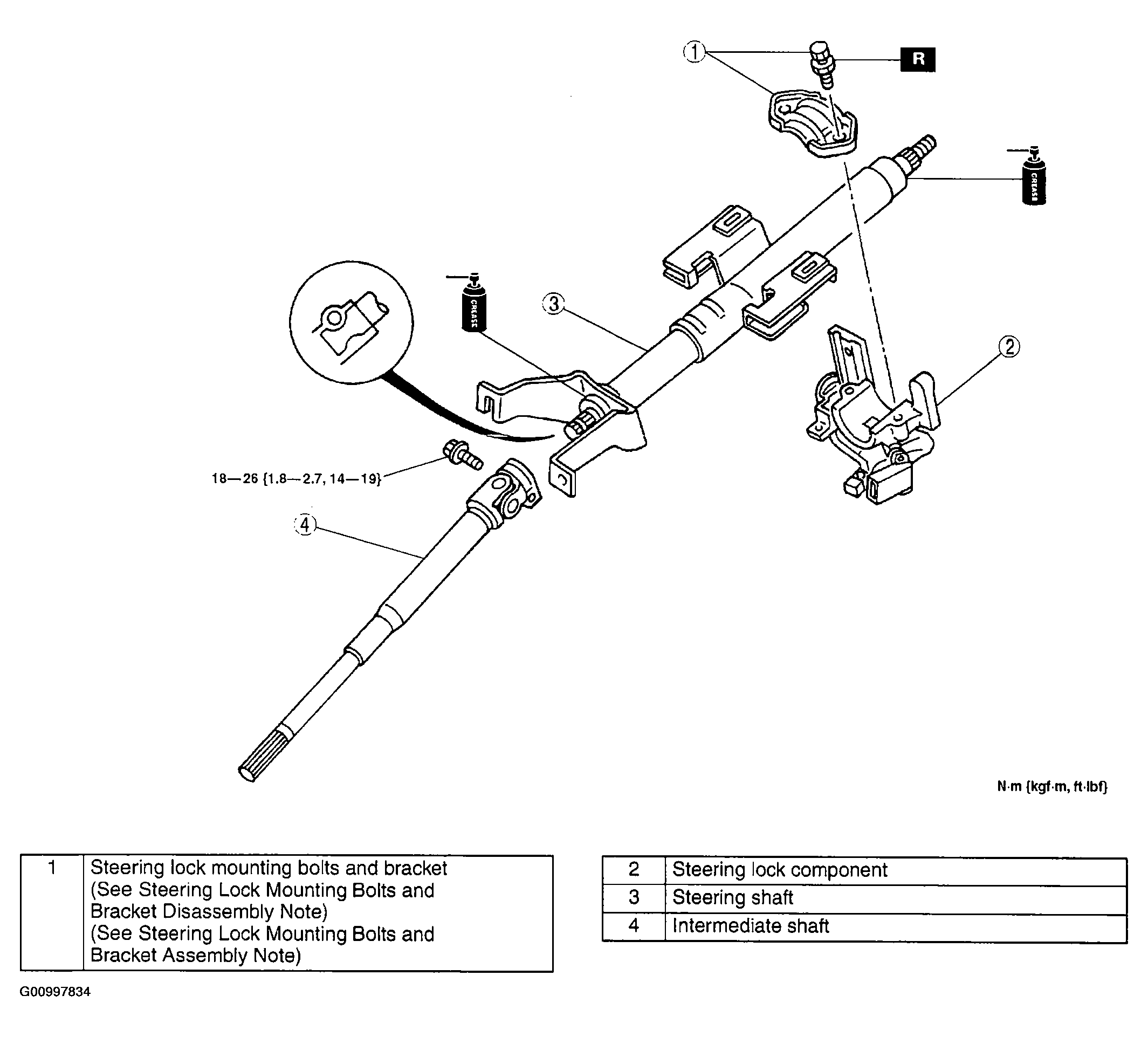

    Fig 1: Disassembling/Assembling Steering Shaft
    G00997834Courtesy of MAZDA MOTORS CORP.
