Steering Wheel And Column Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, verify that the horn sounds.
    • If the horn does not sound, remove the air bag module and connect the module connectors.

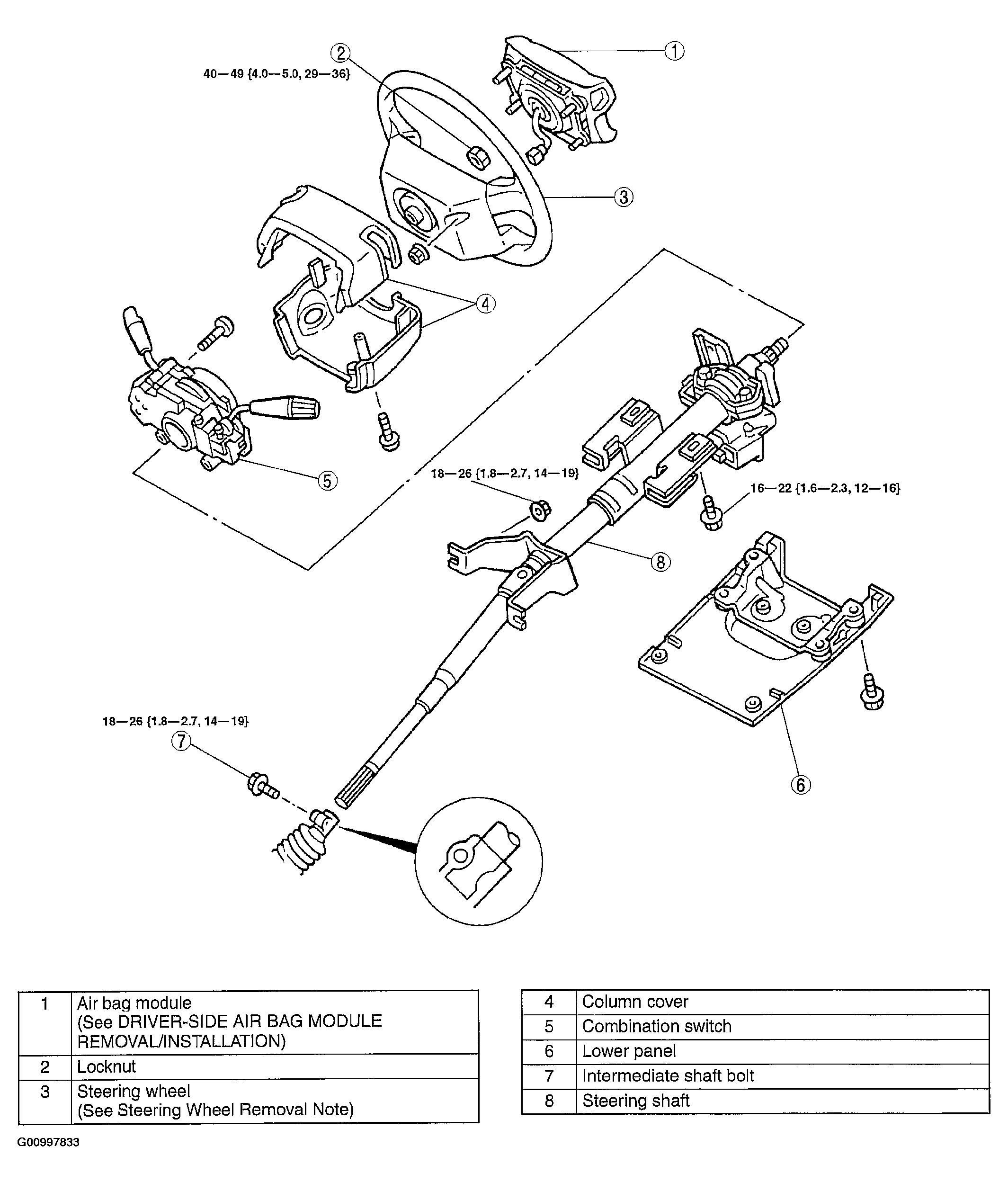

    Fig 1: Removing/Installing Steering Wheel And Column
    G00997833Courtesy of MAZDA MOTORS CORP.
