Door Lock Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Remove in the order indicated in the table.

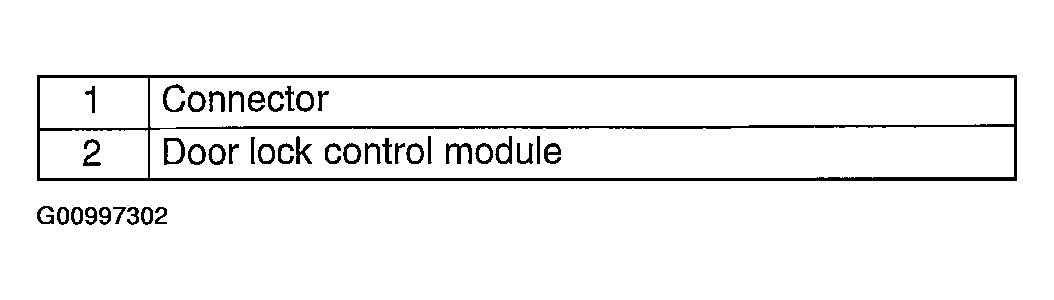

    Fig 1: Removal Order Of Door Lock Control Module Table
    G00997302Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

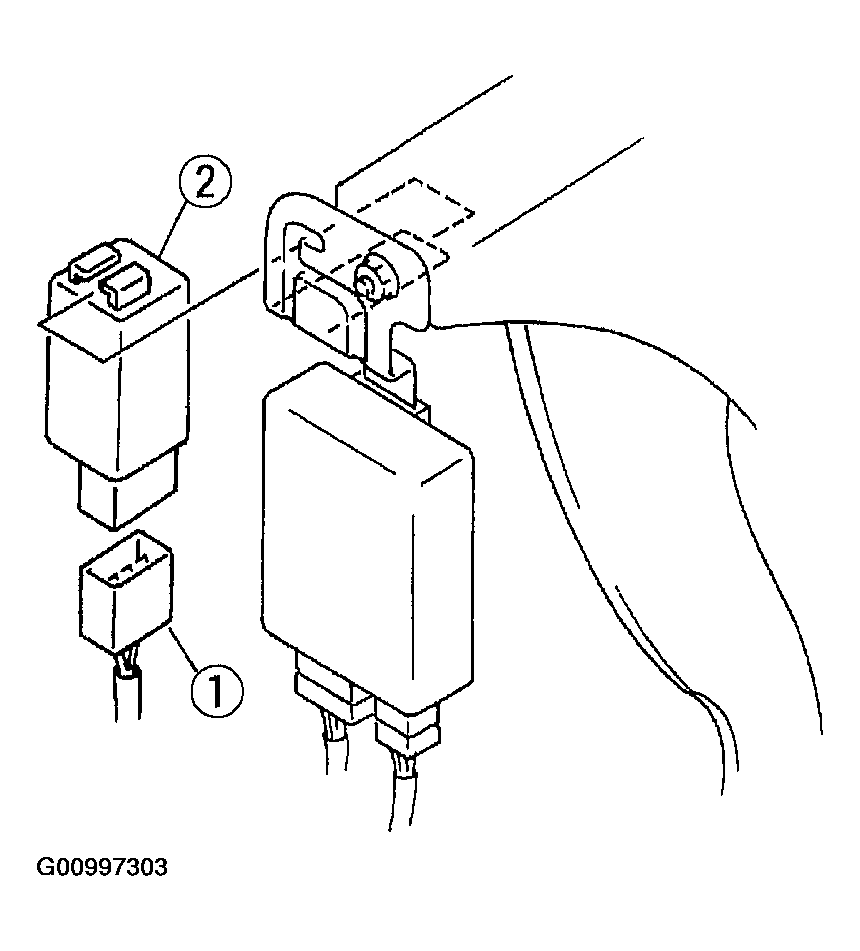

    Fig 2: Removing/Installing Door Lock Control Module
    G00997303Courtesy of MAZDA MOTORS CORP.
