Keyless Control Module Removal/Installation

Disconnect the negative battery cable.
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Disconnect the keyless control module connector.
Remove the nut to remove the keyless control module and the bracket as a module.

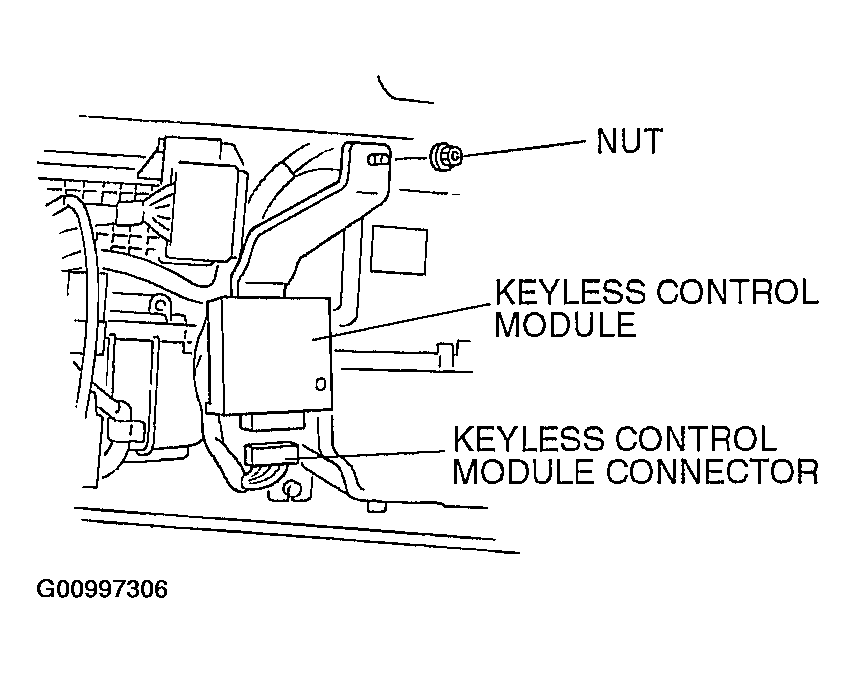

Fig 1: Removing Keyless Control Module
Courtesy of MAZDA MOTORS CORP.
Remove the screw.

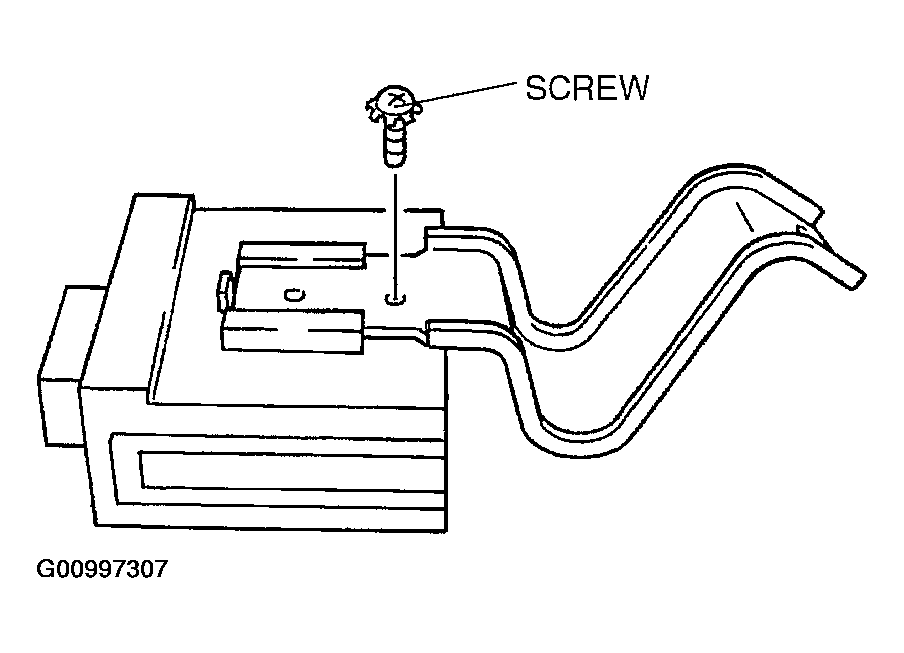

Fig 2: Removing Bracket Screw
Courtesy of MAZDA MOTORS CORP.
Remove the bracket.
Install in the reverse order of removal.

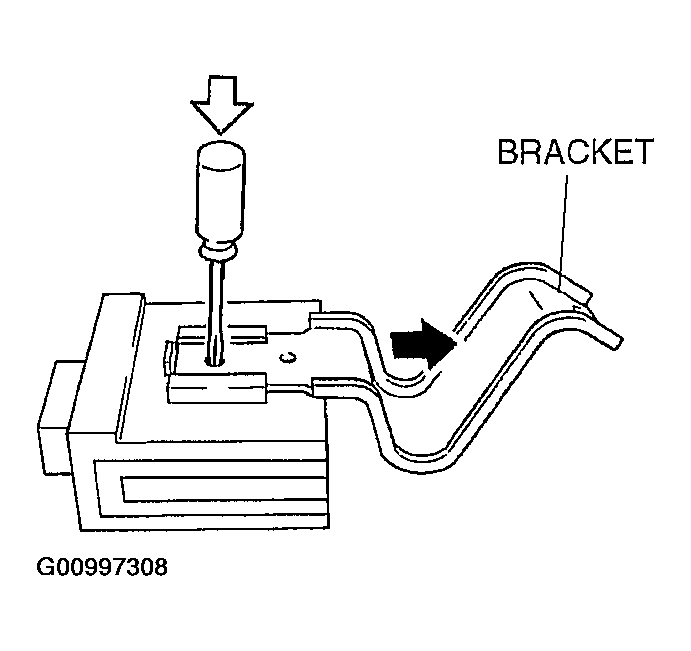

Fig 3: Removing Bracket
Courtesy of MAZDA MOTORS CORP.
