Monitoring System

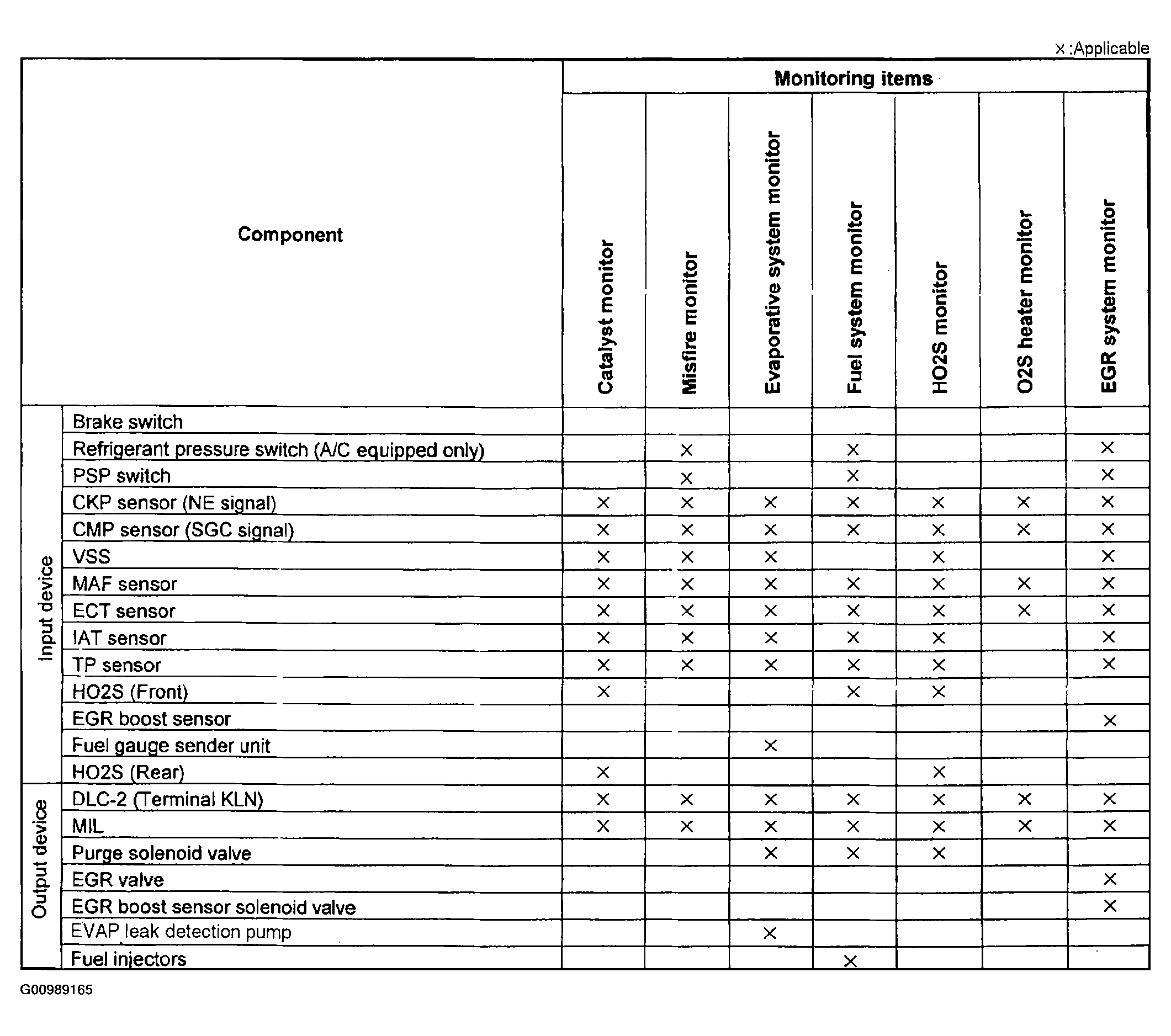

Fig 1: Control System Device And Control Relationship Chart - BP (Monitoring System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
