DTC P0011: [BP] CMP - Timing Over-Advanced
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0011: [BP] CMP - Timing Over-Advanced: Notes

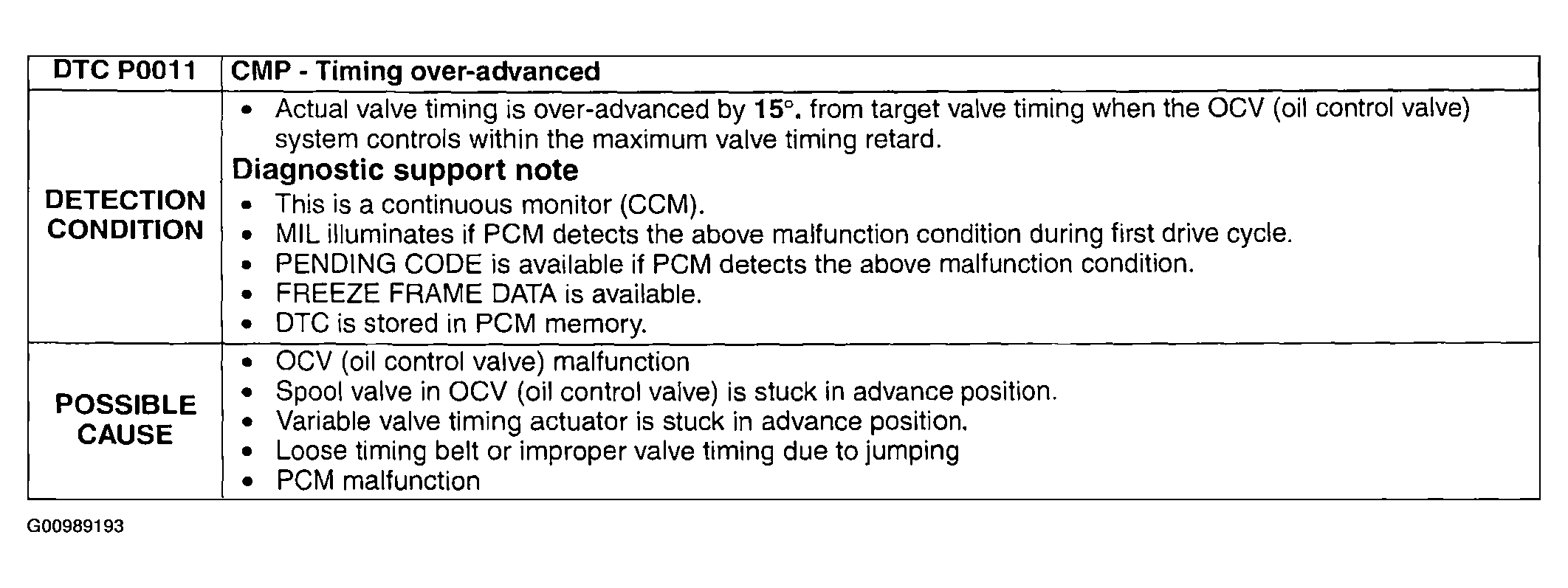

Fig 1: Possible Causes - DTC P0011 [BP]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
