DTC P0103: MAF Circuit High Input
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0103: MAF Circuit High Input: Notes

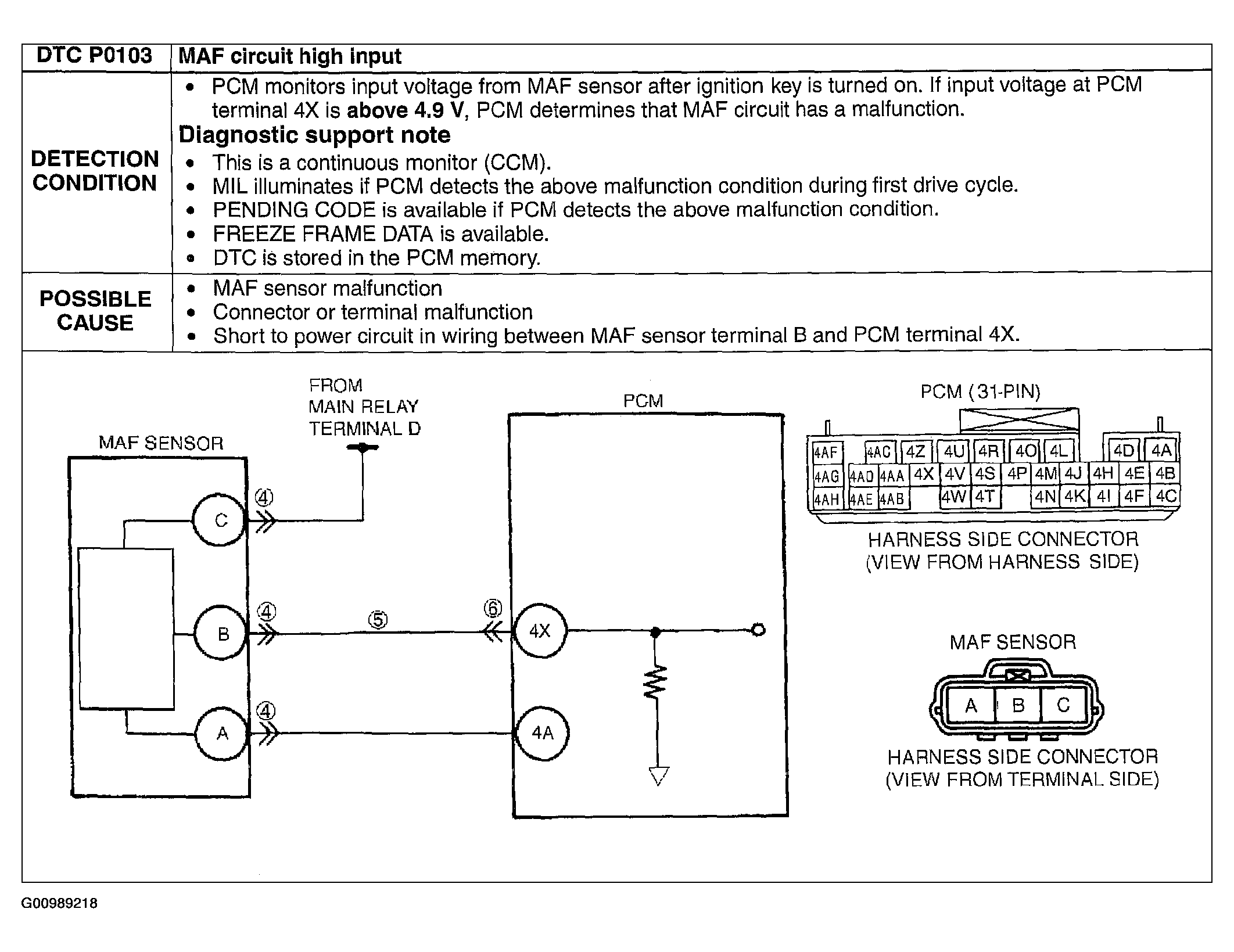

Fig 1: Possible Causes - DTC P0103 [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
