DTC P0121: TP Circuit Range/Performance Problem
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

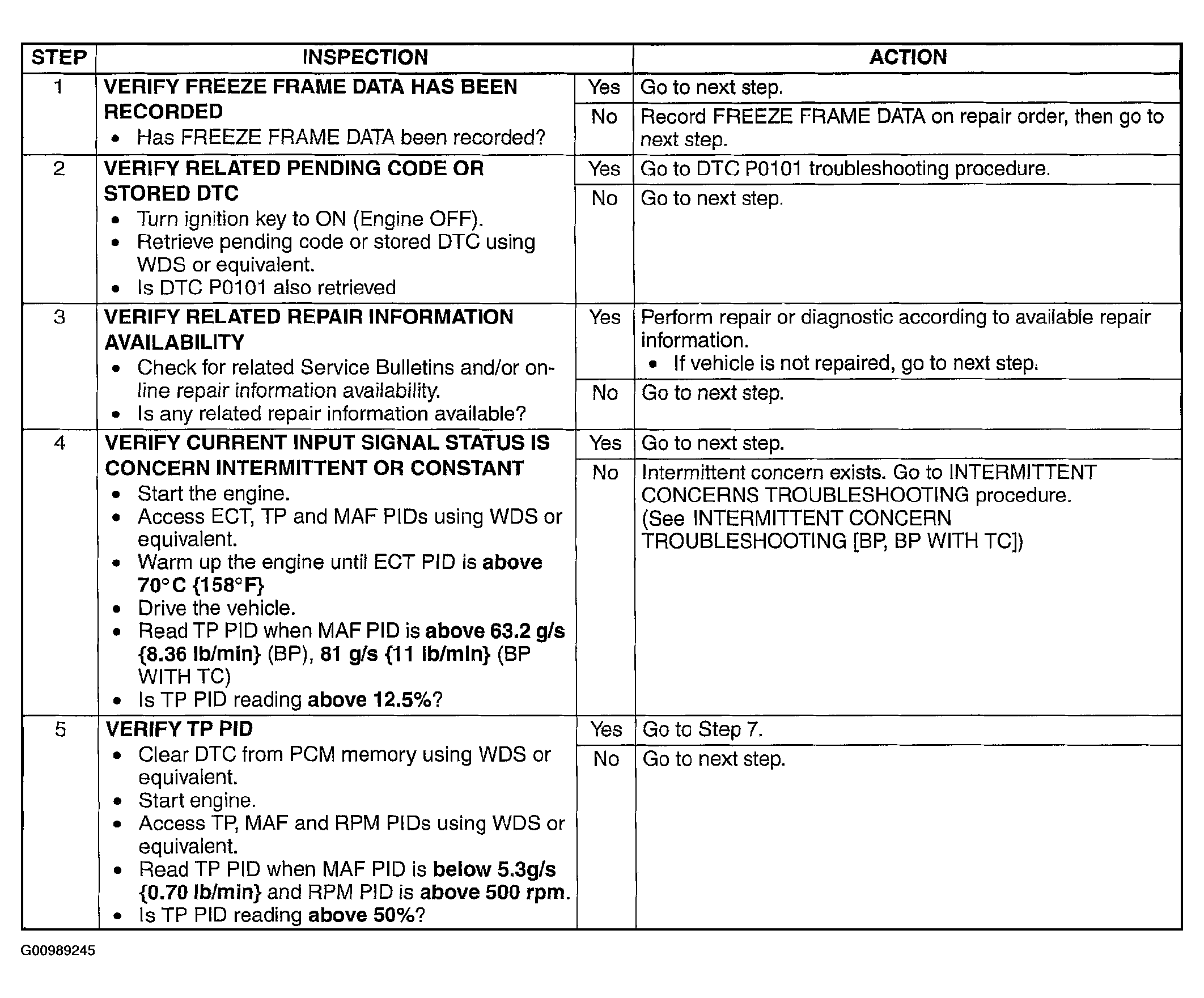

Fig 1: Diagnostic Procedure - DTC P0121 [BP, BP With TC] (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

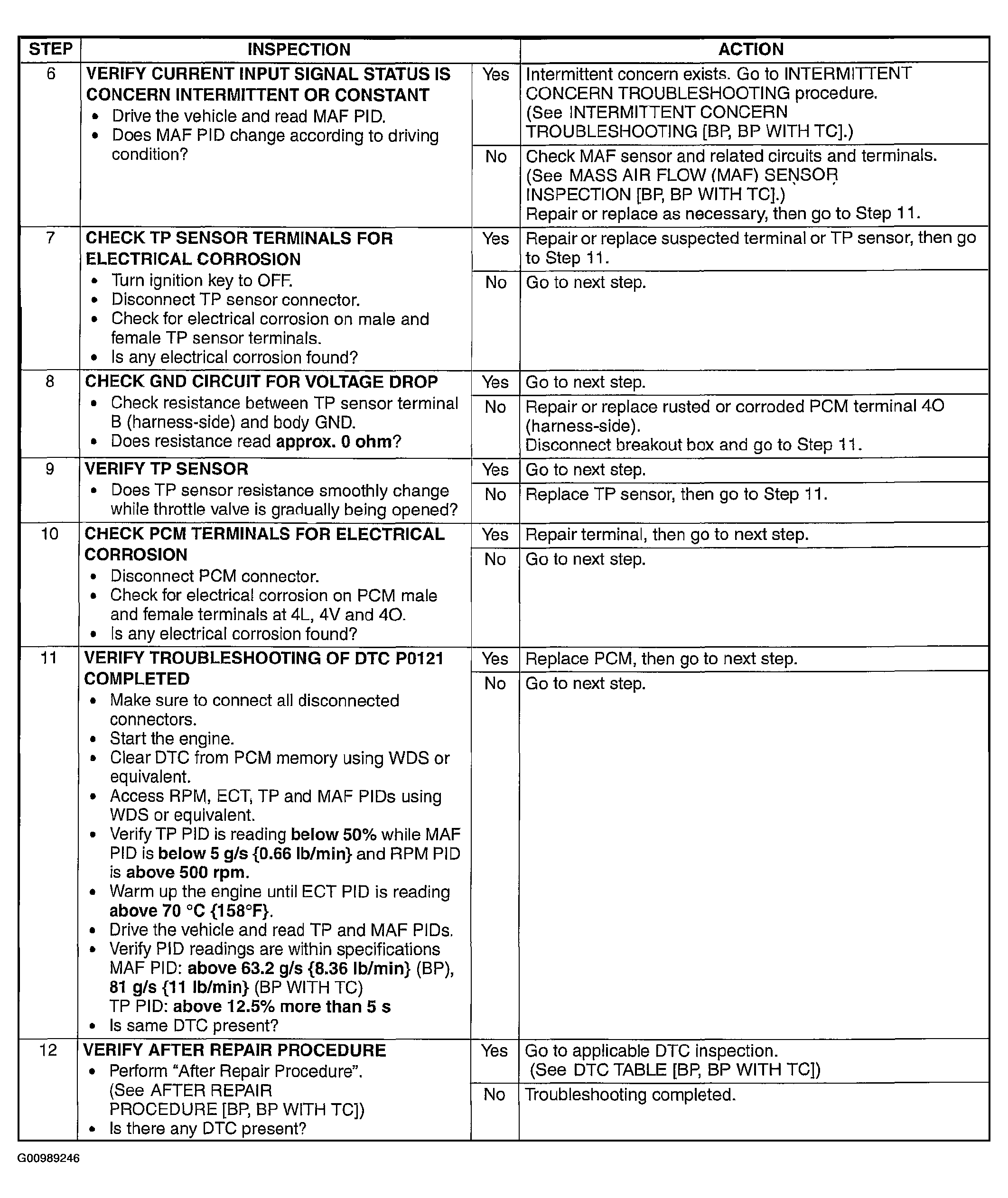

Fig 2: Diagnostic Procedure - DTC P0121 [BP, BP With TC] (Steps 6-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
